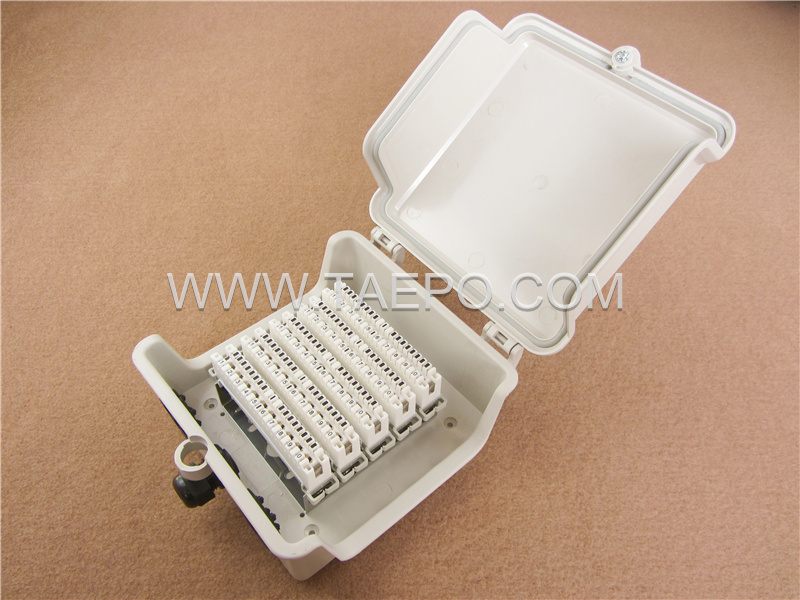

Outdoor 50 pairs distribution point box for LSA module, 195x191x81mm, key locking, plastic housing, with back mount frame, without LSA module

TAEPO - Your Professional Source for Distribution Point Box, Expert Chinese Manufacturing at Its Best!
What is a Distribution Point Box used for?


    DESCRIPTIONS

Distribution point box / DP (TP-1707-50) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines. It is is a compact and durable enclosure designed for securely housing and protecting LSA profile modules in outdoor telecommunication networks. With its robust plastic housing and reliable key-locking system, it provides both physical security and environmental protection for up to 50 pairs of copper cable terminations. The design ensures ease of installation, inspection, and maintenance, making it suitable for harsh outdoor environments.

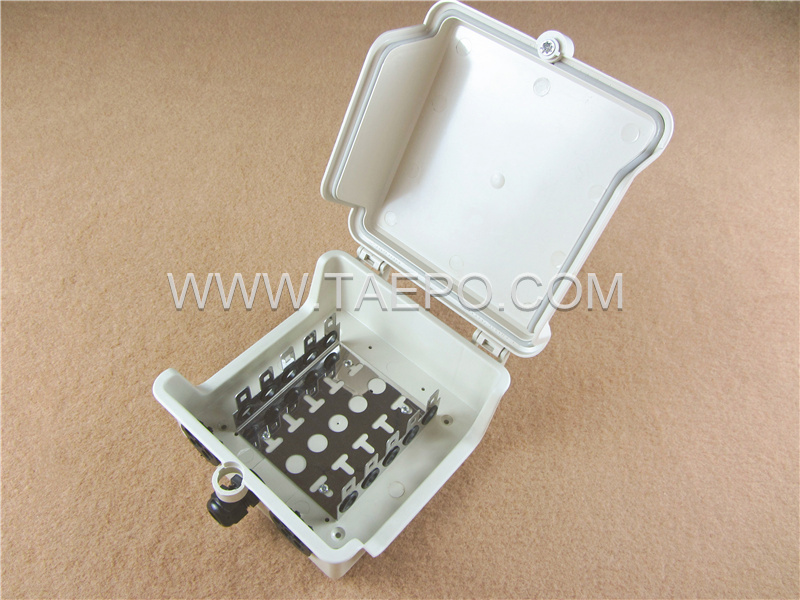

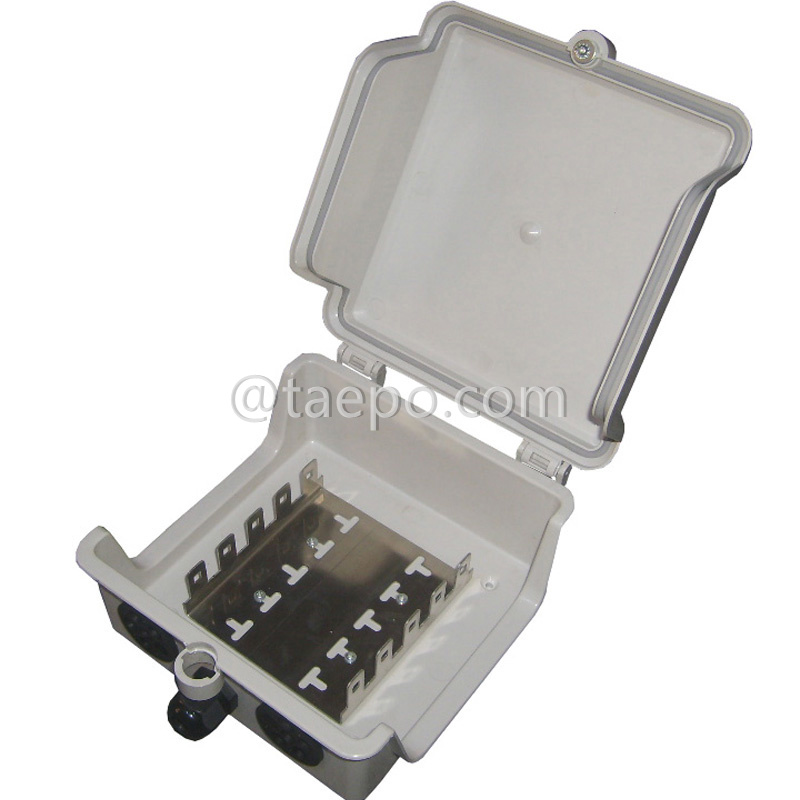

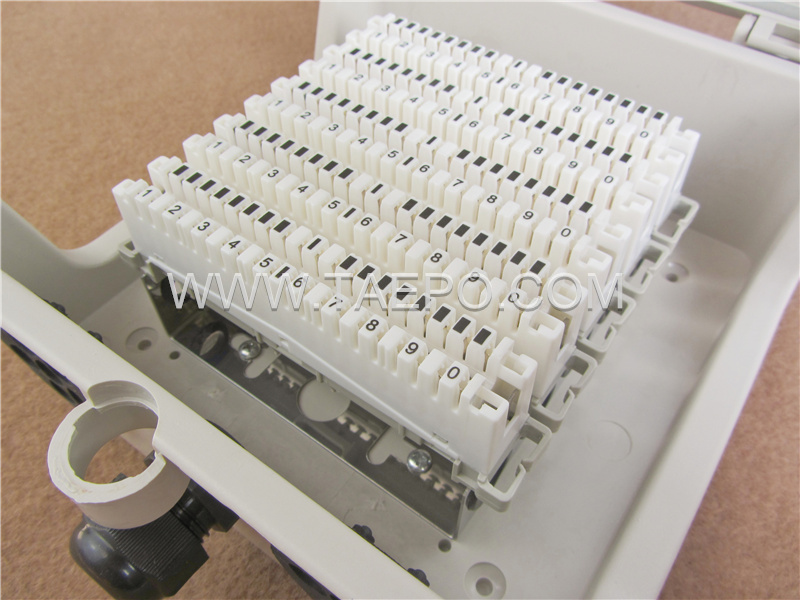

This distribution point box is equipped with a back mount frame to hold the LSA modules firmly in place, ensuring organized and secure cable management. Its medium size, 195x191x81mm, allows efficient space utilization while still offering sufficient internal space for termination and jumper wire routing. The key-locking mechanism enhances security by preventing unauthorized access, reducing risks of tampering or accidental disconnection.

10 pairs LSA disconnection module is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

    MAIN FEATURES

• Insulation Displacement Connection: The box utilizes IDC technology, allowing wires to be terminated directly into the module slots for fast, secure, and reliable connections.
• No Wire-stripping, Screw and Solder Free: Cable termination is simplified as there is no need for stripping, screws, or soldering, saving time during installation.
• Reliable Connections: Designed to ensure stable and durable electrical contact, minimizing the risk of loose or faulty terminations.
• Clear Labeling: Provides clear identification for each pair, allowing easier management, troubleshooting, and record keeping.
• Modular Design and Installations: Built with modular LSA profile components, enabling flexible configurations and simple replacement of modules when needed.
• Gas Tight Connection: IDC termination creates a gas-tight seal around conductors, protecting against corrosion and oxidation over time.
• One Push Wire Insertion: Wire insertion is completed with a single push action, reducing installation effort and ensuring proper seating.
• Robust Long-term Environmental Stability: Manufactured from high-quality materials to withstand varying climates and provide consistent performance.
• Flexible Indoor and Outdoor Use: Suitable for deployment in both indoor environments and outdoor conditions without performance degradation.
• Wall or Pole Mountable: The housing supports versatile mounting options, allowing installation on walls or poles depending on site requirements.
• Quick Mounting and Installation: Designed with installer efficiency in mind, reducing labor time and ensuring a straightforward setup.

    INSTALLATION VIDEOS

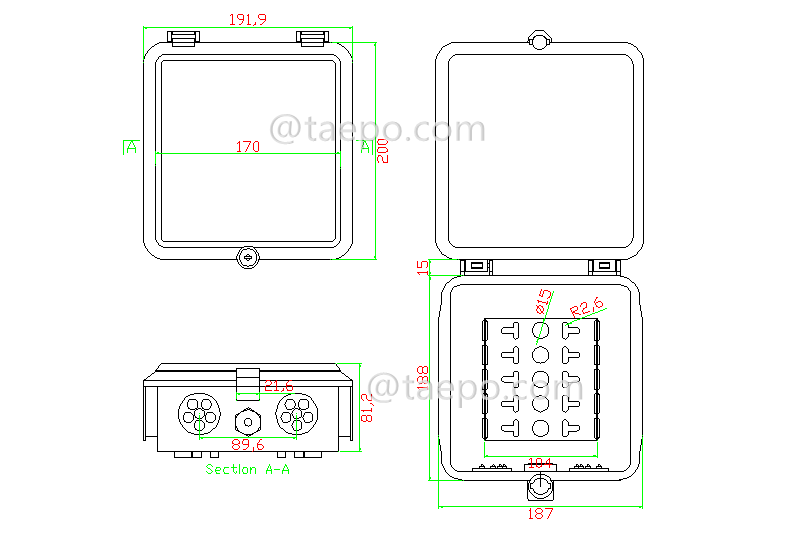

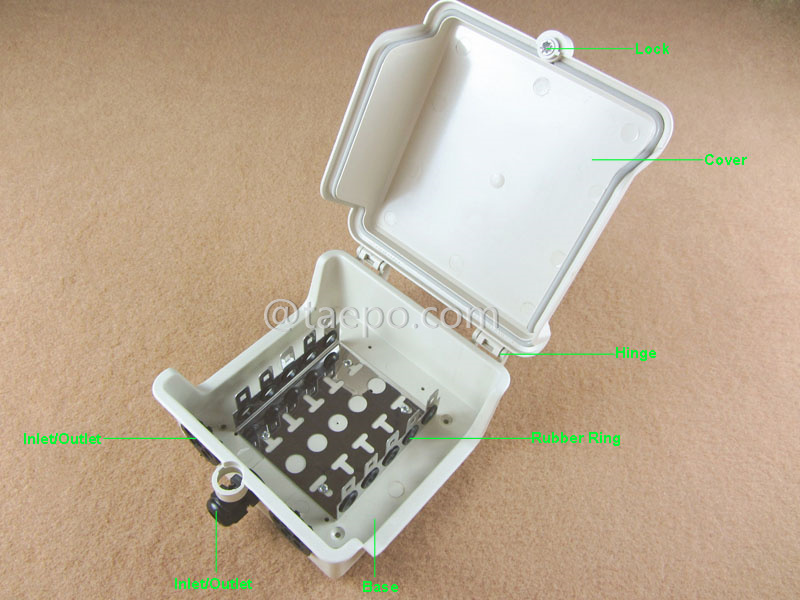

    SCHEMATIC DIAGRAMS

    SCHEMATIC DIAGRAMS

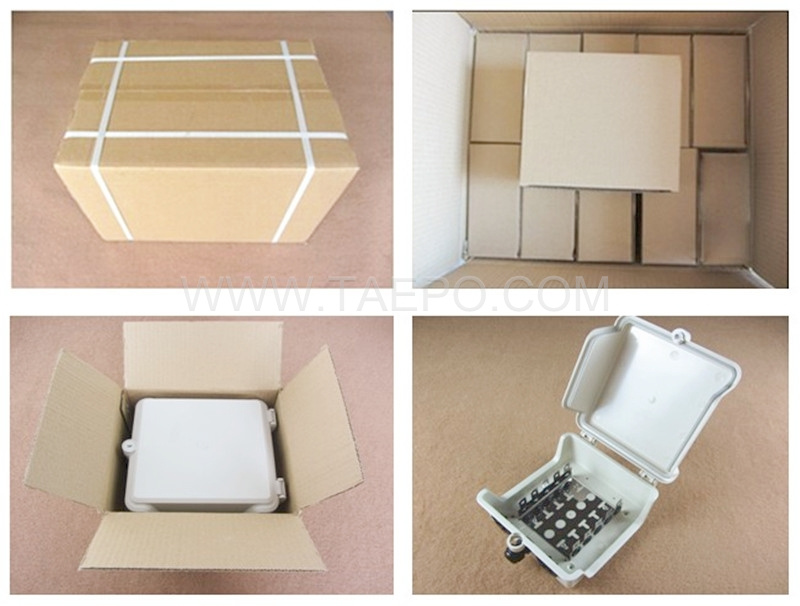

    PACKING PICTURES

    ORDER DATA
