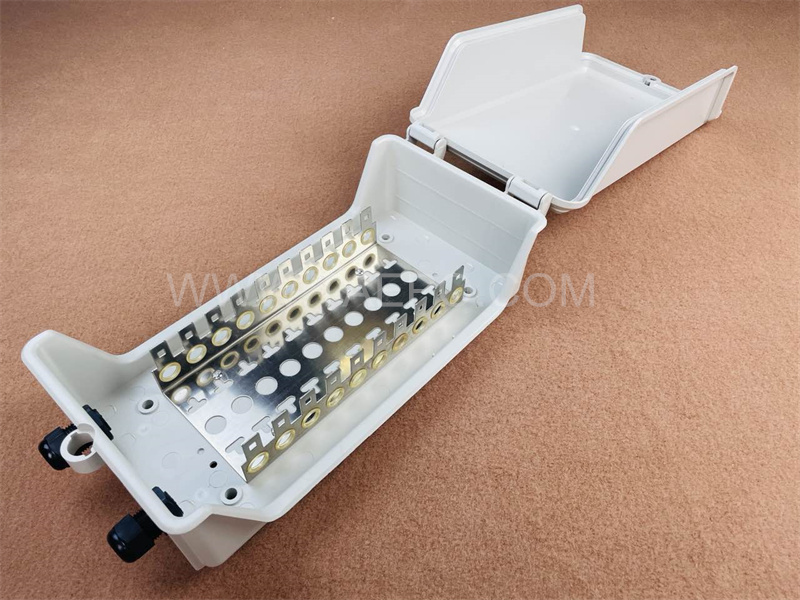

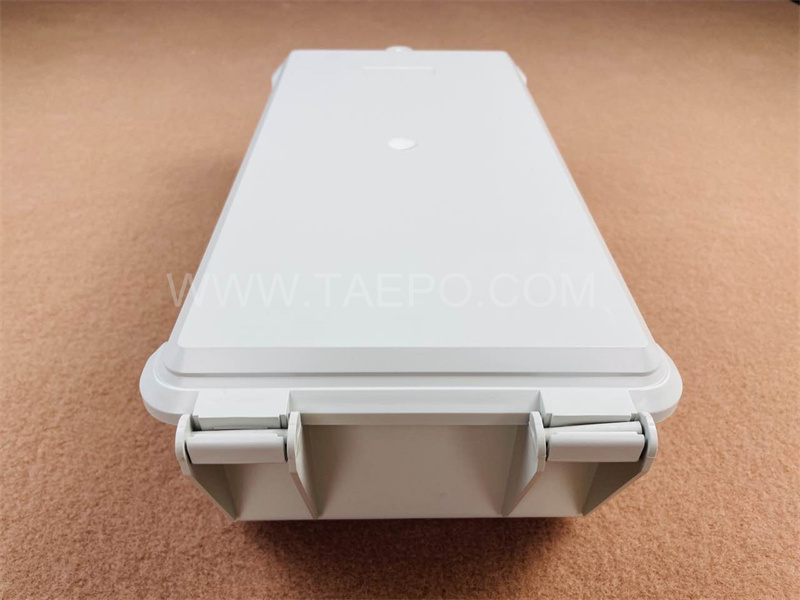

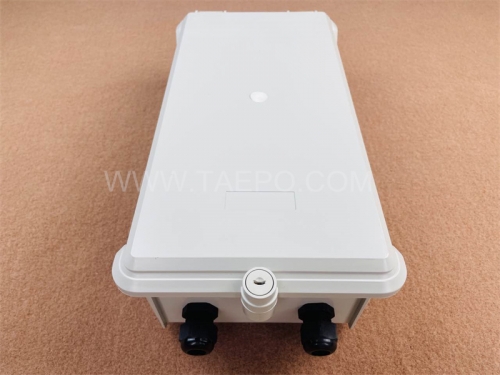

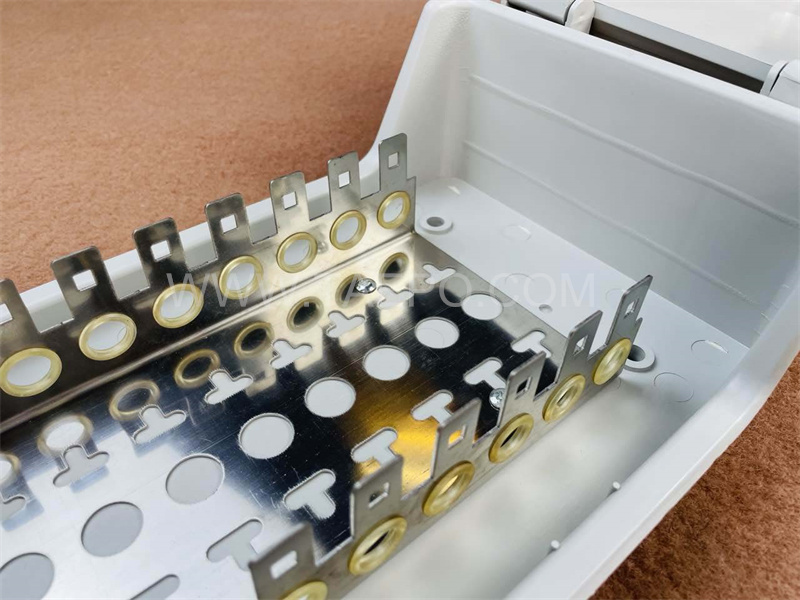

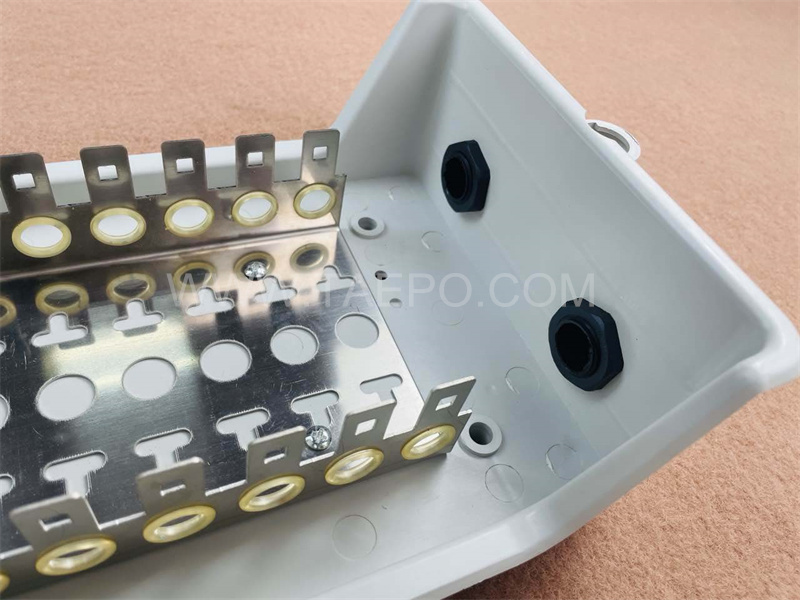

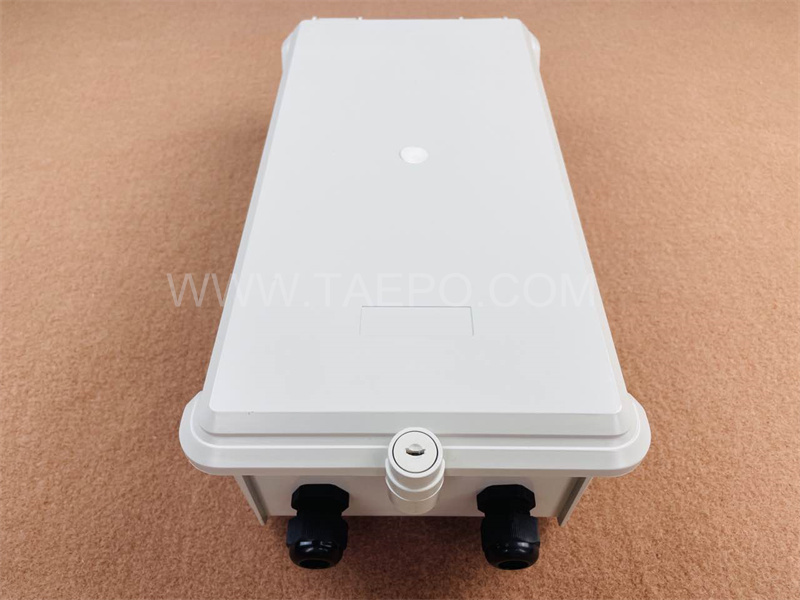

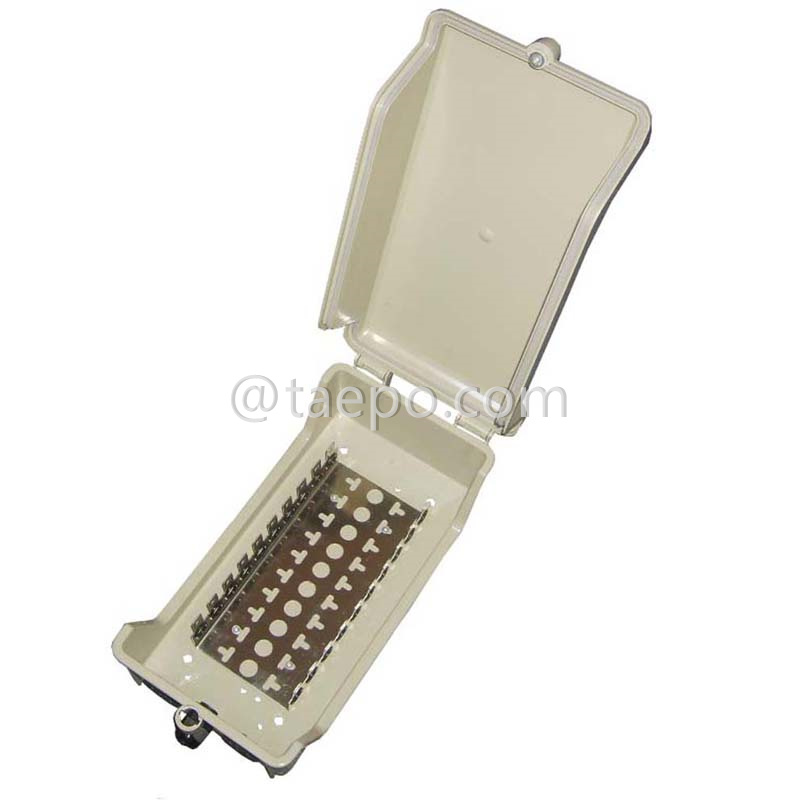

Outdoor 100 pairs distribution point box for LSA module, 350x188x111mm, key locking, plastic housing, with back mount frame, without LSA module

TAEPO - Your Trusted Chinese Manufacturer of Distribution Point Box with Professional Expertise !
What does a Distribution Point Box do?


   DESCRIPTIONS

Distribution point box / DP (TP-1707-100) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines. This distribution point box is designed for outdoor environments to manage up to 100 pairs of cables. It incorporates an LSA module, which ensures reliable and organized cable connections for telecommunications systems. With its robust plastic housing, the box provides long-lasting protection against environmental factors like dust and moisture making it suitable for use in a variety of outdoor settings. The key locking feature ensures that only authorized personnel can access the box, providing an additional layer of security.

10 pairs LSA disconnection module is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

Constructed from high-quality plastic, the box is resistant to weathering, corrosion, and physical impacts, ensuring durability over time. Its compact design and user-friendly features make it ideal for applications that require secure, organized, and weatherproof cable management. This distribution point box is a reliable choice for managing outdoor network connections and protecting sensitive infrastructure.


   MAIN FEATURES

• Housing Material: High-quality plastic for durability and weather resistance.

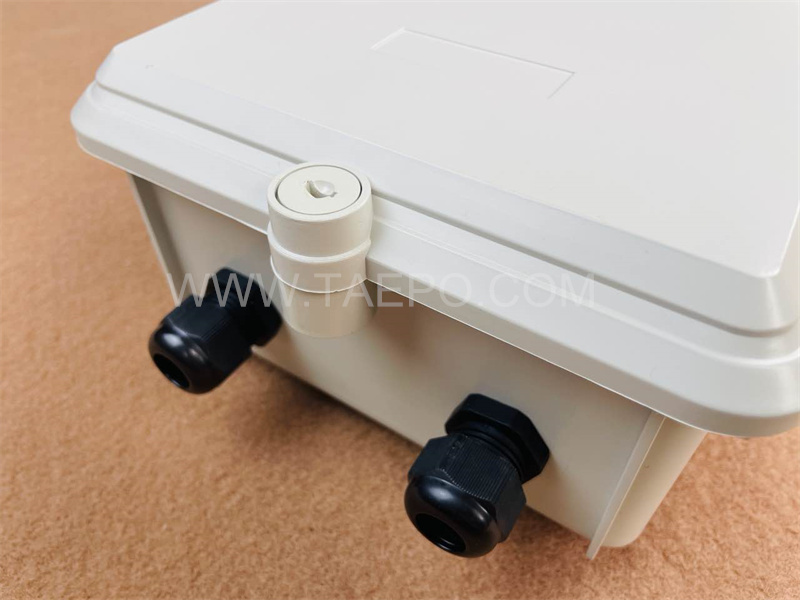

• Key Locking Mechanism: Provides security by restricting access to authorized personnel only.
• Mounting Type: Back mount frame for easy and secure installation.
• LSA Module: Supports both cutting and connecting functionalities for telecom networks.
• Environmental Protection: Designed for outdoor use, moisture, and dust.
• Cable Capacity: Accommodates up to 100 pairs of cables for network distribution.
• Corrosion Resistance: Plastic housing protects the interior from environmental degradation.
• Impact Resistance: Resistant to physical impact, ensuring long-term reliability.
• Weatherproof Design: Suitable for a variety of outdoor environmental conditions.
• Secure Installation: Ensures stable mounting with a back mount frame for wall or surface attachment.
• Durable Construction: Built to withstand tough outdoor environments and extend service life.
• Tamper-Resistant: Key locking mechanism prevents unauthorized tampering.
• Cable Organization: Ensures neat and organized cable management, reducing the risk of damage or interference.
• Weather Sealing: Enhanced sealing to protect against rain and moisture.
• Temperature Range: Operates effectively within a wide range of temperatures suitable for outdoor conditions.
• Easy Maintenance: Allows for simple maintenance and cable management due to its design and modular components.

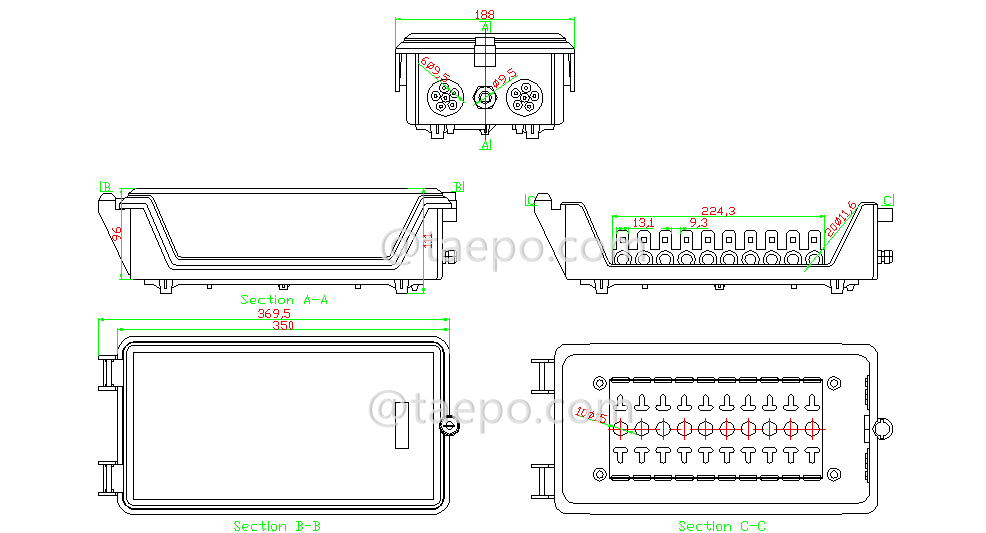

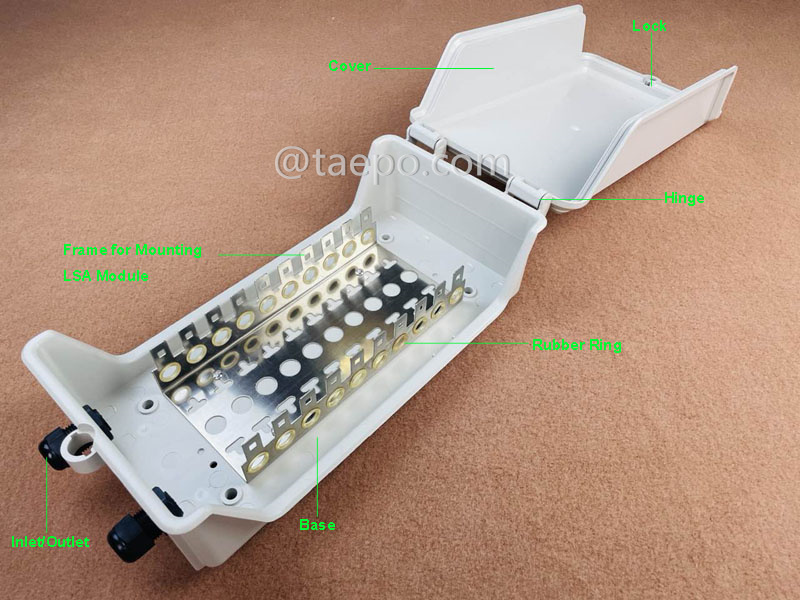

    SCHEMATIC DIAGRAMS

    SCHEMATIC DIAGRAMS

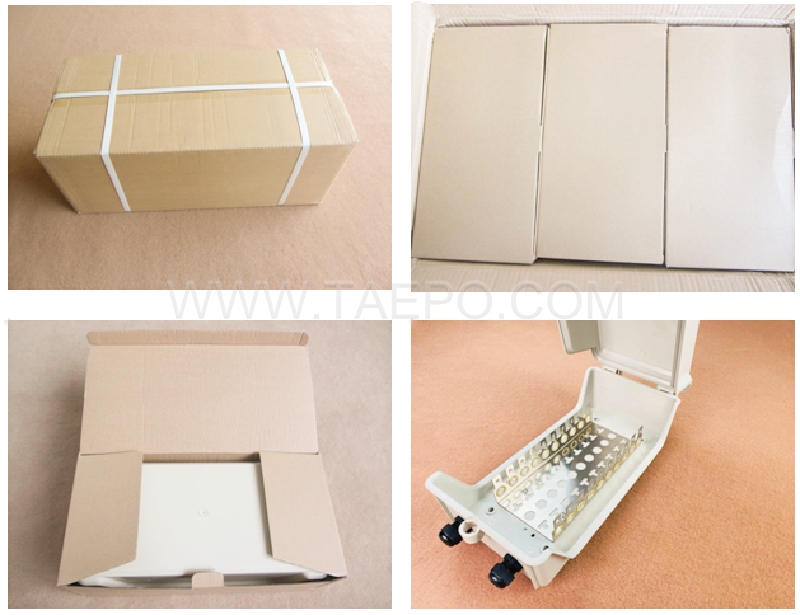

   PACKING PICTURES

   ORDER DATA
