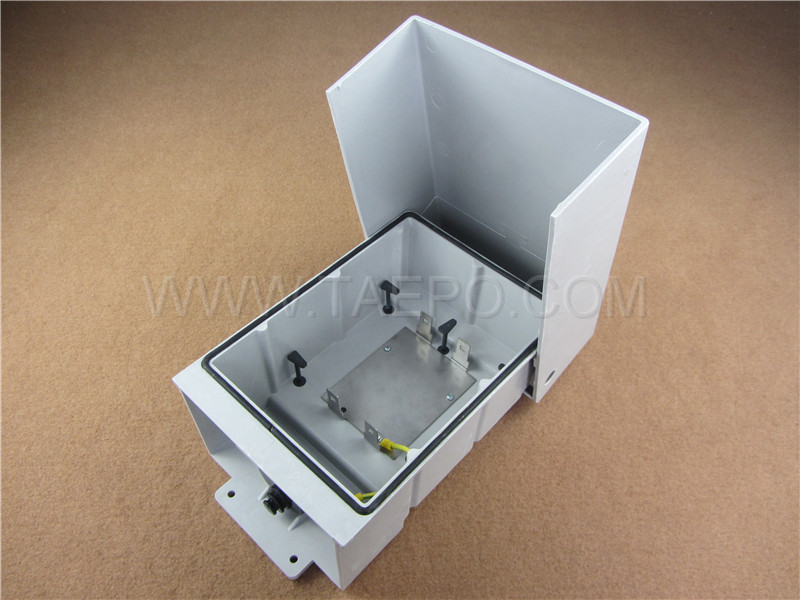

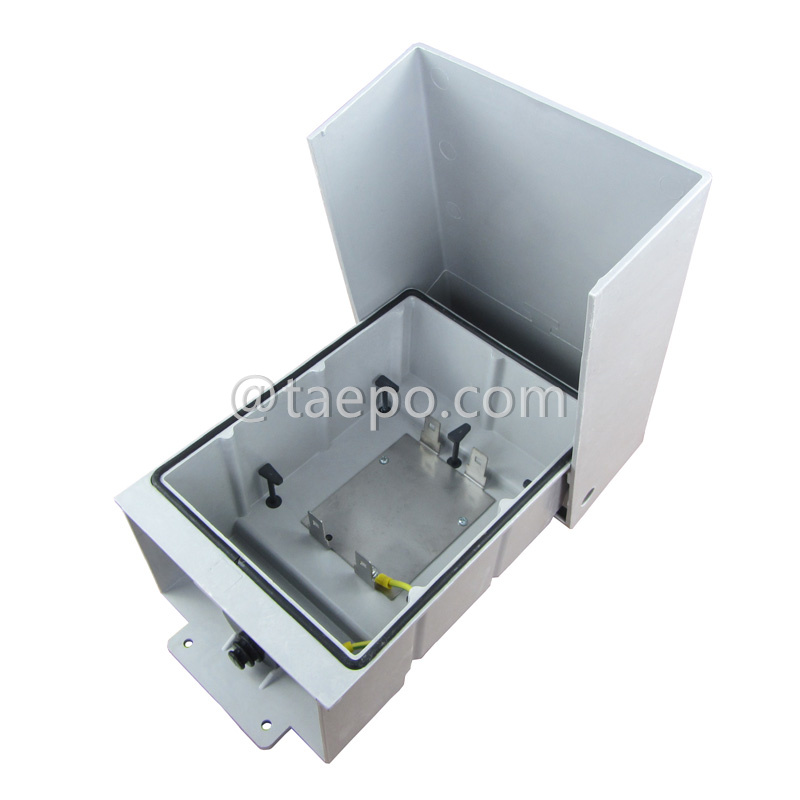

Outdoor 20 pairs connection box 1B 11 for LSA module, 250x175x111mm, RFP housing, snap-on locking, with back mount frame, without LSA module, without lock

TAEPO - Specialized in Connection Box for LSA Module, Professional Chinese Manufacturer for Versatile Network Solutions !
What is a Connection Box used for?


   DESCRIPTIONS

Distribution point box / DP (TP-1708-20B) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

10 pairs LSA disconnection module is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor. The Outdoor 20 pairs connection box is designed to house LSA modules and protect them in outdoor environments. Its compact design allows for easy mounting and secure connections of up to 20 pairs of wires. The box is equipped with an RFP housing material, which provides durability and protection against harsh weather conditions.

The box typically comes with the LSA module, which is a standardized module for connecting multiple pairs of wires in a structured manner. This ensures proper organization of the cable connections while offering easy maintenance and troubleshooting. The box is also designed to withstand extreme temperatures and weather conditions, making it suitable for long-term outdoor deployment.

    MAIN FEATURES

• 20 Pairs Capacity: Can hold up to 20 pairs of wires, ideal for medium-scale telecommunications and networking applications.
• LSA Module: Pre-equipped for easy installation of LSA (Löt- und Stecksystem) modules for proper wire organization.
• RFP Housing: Durable and weather-resistant material, ensuring the box is protected from external elements like rain, dust, and UV rays.
• Snap-on Locking Mechanism: Easy installation with secure locking to prevent accidental disconnections.
• Compact Dimensions: 250 x 175 x 111 mm, offering flexibility in installation while saving space.
• Outdoor Use: Designed specifically for outdoor environments, with protection against dust, water, and extreme temperatures.
• UV Protection: Ensures the housing material does not degrade when exposed to direct sunlight over time.
• Weatherproof: Waterproof and weather-resistant construction, suitable for all outdoor conditions.
• Heat Resistance: Can withstand high temperatures, providing reliable operation even in hot climates.
• Corrosion-Resistant: The materials used are resistant to corrosion, ensuring longevity even in humid or saline environments.
• Low Maintenance: The snap-on feature minimizes the need for tools during installation and disassembly, making it easier to maintain.
• Easy Access: Allows technicians to access the LSA modules easily for maintenance or troubleshooting without removing the entire box.
• Impact-Resistant: Tough housing prevents damage from physical impact.
• Fire-Resistant: The housing is fire-resistant, adding an additional layer of safety.
• Temperature Range: Designed to operate in a wide range of temperatures, from -40°C to +85°C.
• Easily Expandable: Additional modules or connections can be added as needed without significant modification.

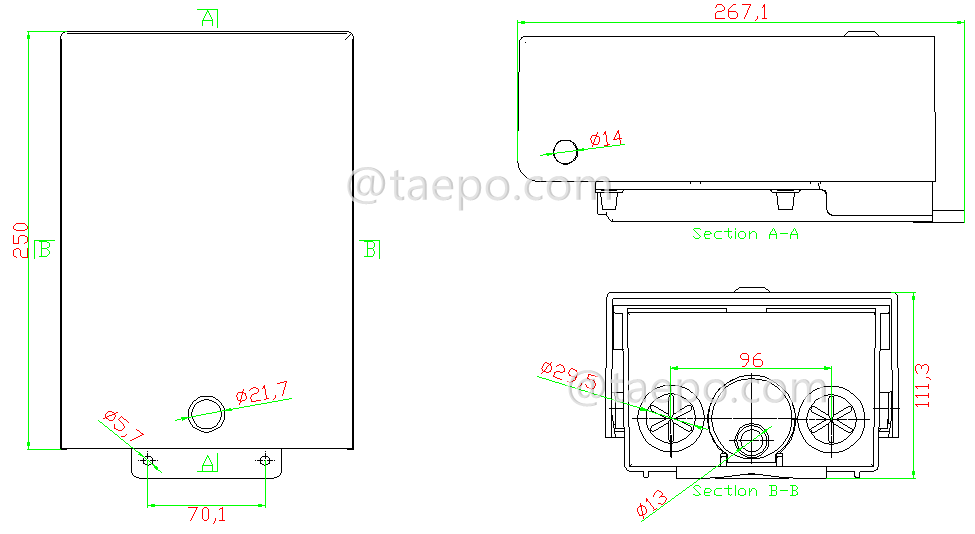

    SCHEMATIC DIAGRAMS

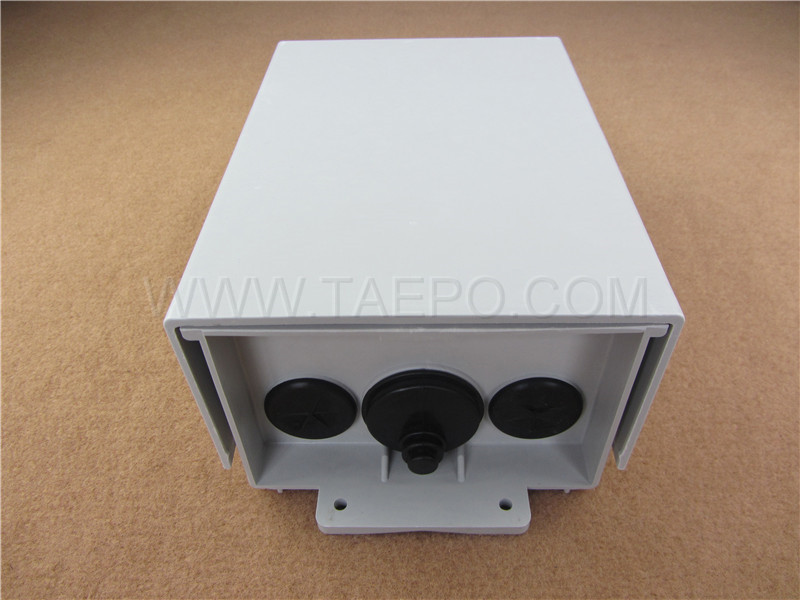

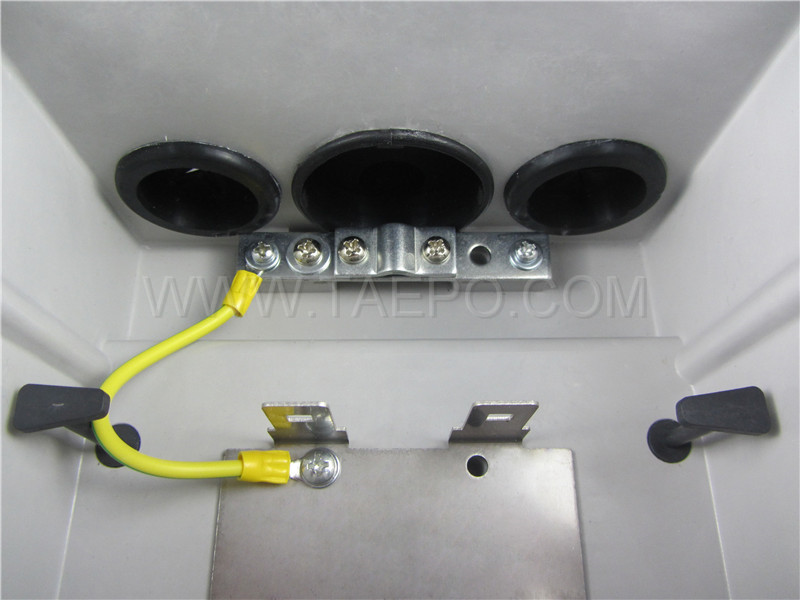

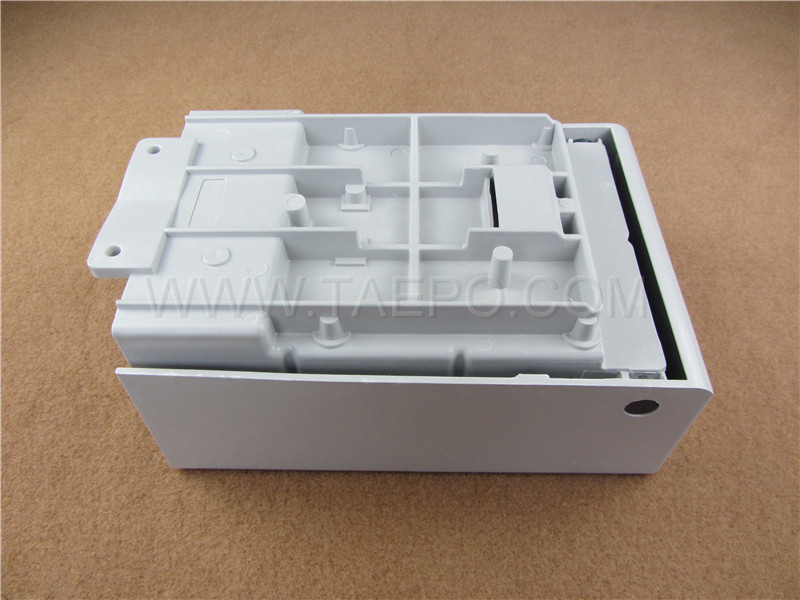

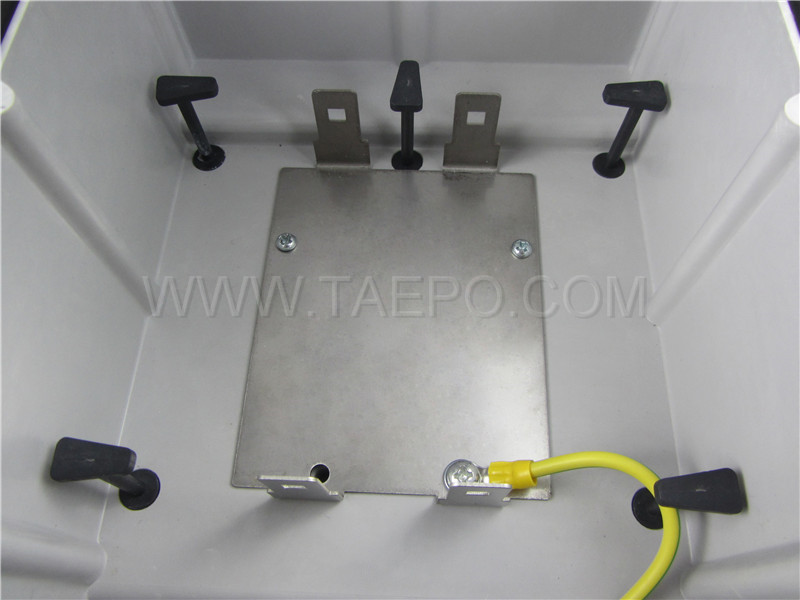

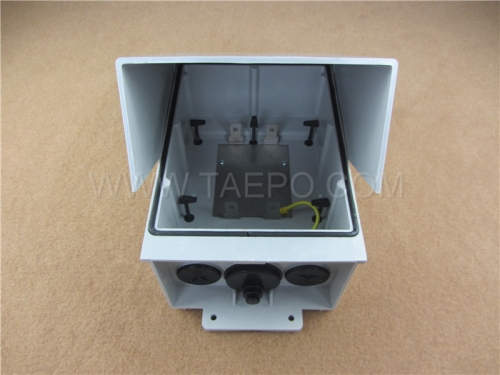

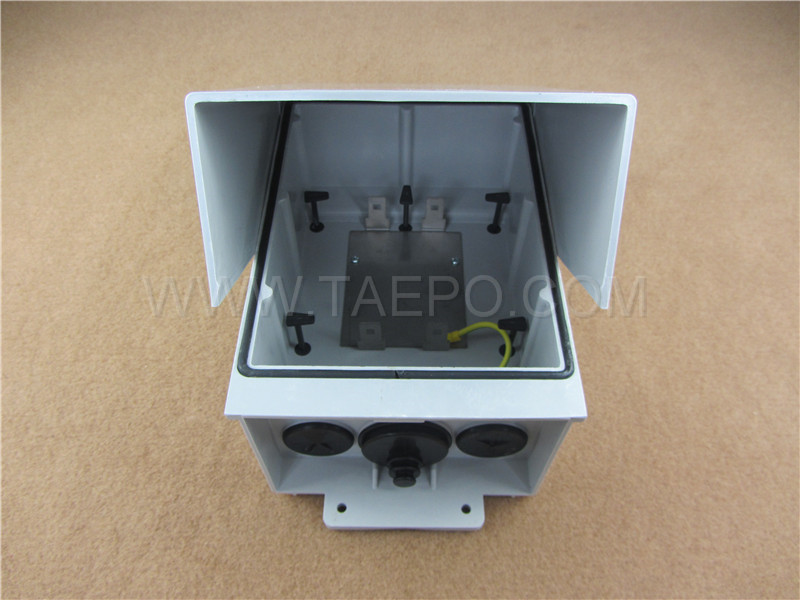

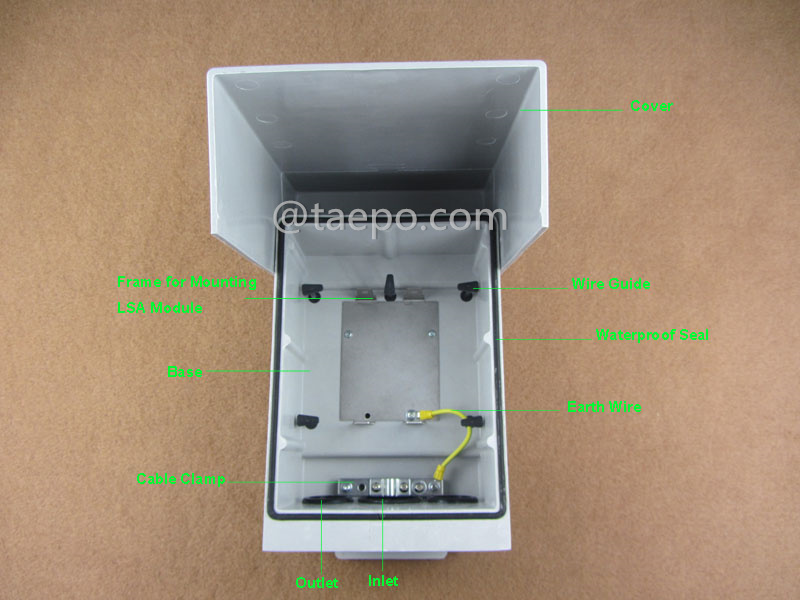

    ILLUSTRATION PICTURES

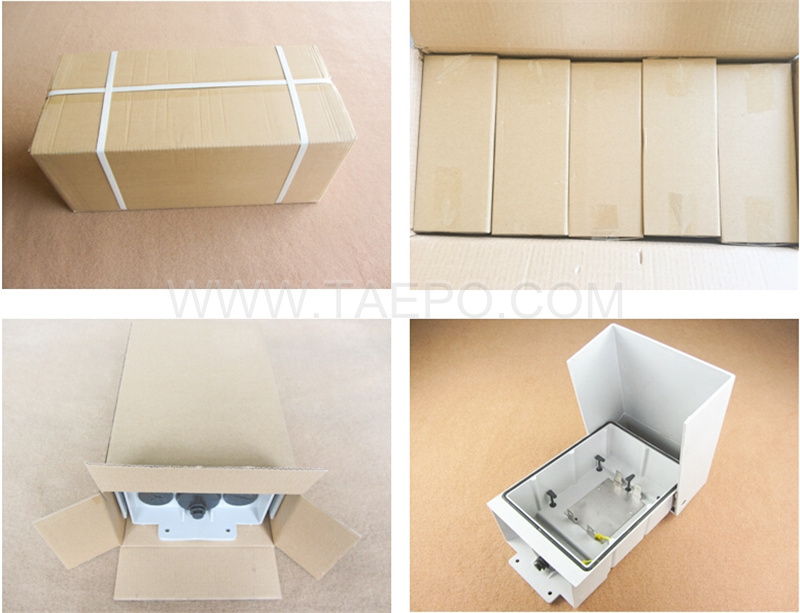

    PACKING PICTURES

    ORDER DATA
