What does Keystone Jack do?
DESCRIPTIONS
The Keystone Jack CAT5E STP 8P8C (TP-5202-C5ES8) is a high-performance modular connector designed for structured cabling systems. It supports Shielded Twisted Pair (STP) cabling, which ensures protection against electromagnetic interference (EMI) and crosstalk, making it ideal for high-speed and sensitive data transmission environments. With a 90-degree termination angle, this jack is perfect for tight spaces and structured installations where precision and space efficiency are essential.
This keystone jack is compliant with Category 5e (CAT5E) standards, supporting data transmission rates up to 1 Gbps, making it suitable for most networking applications, including VoIP, Ethernet, and multimedia. The 8P8C (8-position, 8-conductor) configuration ensures compatibility with standard Ethernet cables and devices. Additionally, its AP style design offers a clean and professional look, blending seamlessly with modern networking panels and faceplates.
The jack is designed for easy and reliable punch-down installation, requiring no special tools, while its robust construction ensures long-lasting performance. This makes it suitable for both residential and commercial applications, offering excellent performance in demanding environments.
MAIN FEATURES
- Compatibility: It is designed to be used with Cat5e Ethernet cables, which are commonly used for 10/100/1000BASE-T networks.
- Performance: The keystone jack is rated for 100 MHz bandwidth and can support data transfer rates of up to 1 Gbps.
- Durability: The jack is made of high-impact, flame-retardant plastic to ensure long-lasting durability and safety.
- Ease of installation: The keystone jack is designed for quick and easy installation using a punch-down tool. The jack typically features color-coded wiring labels to make it easy to install the wires correctly.
- Shielded construction: The jack is designed with a metal shield that helps to reduce electromagnetic interference and crosstalk between cables.
- Color-coded wiring: The jack typically has color-coded wiring terminals that help to ensure proper wiring connections.

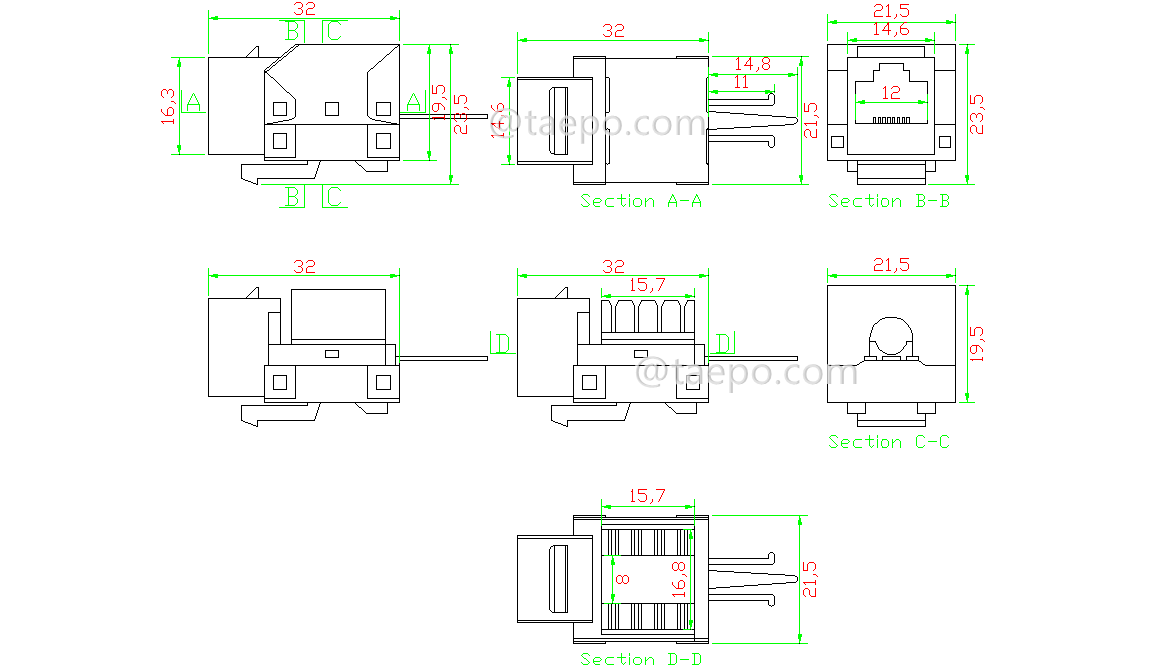

SCHEMATIC DIAGRAMS

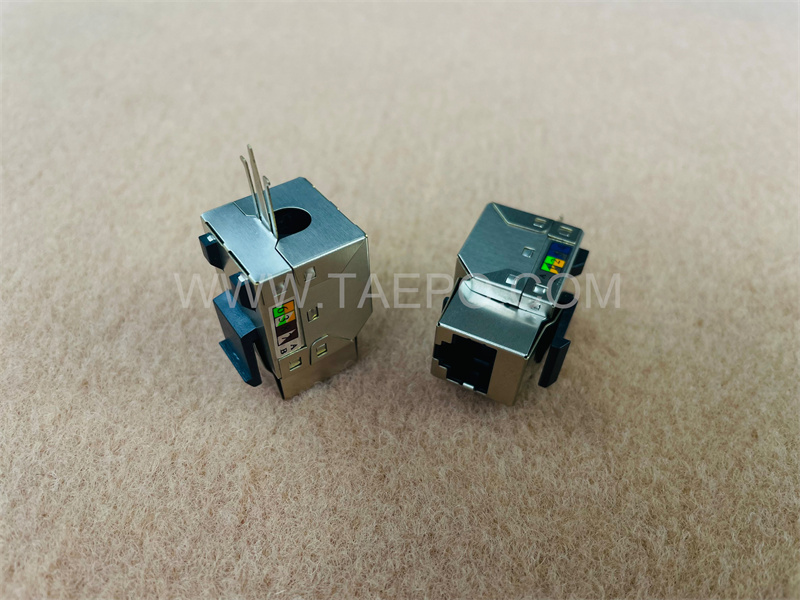

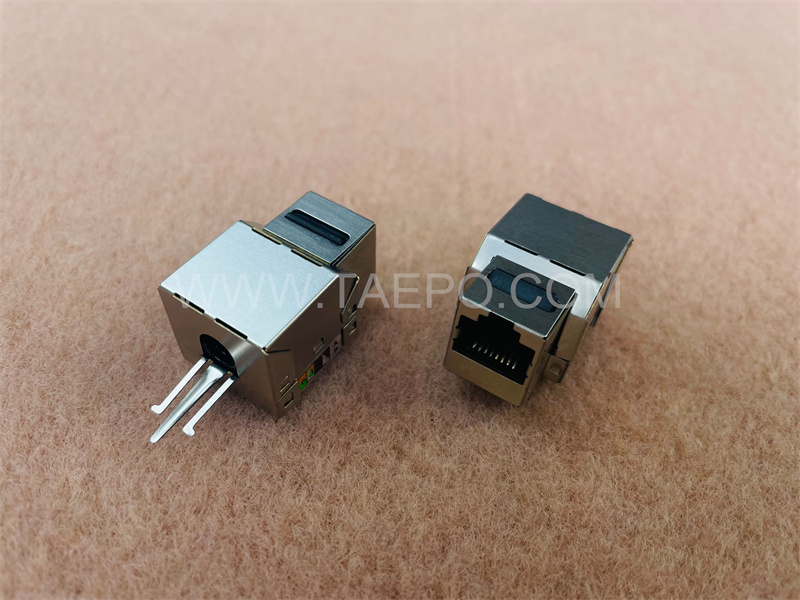

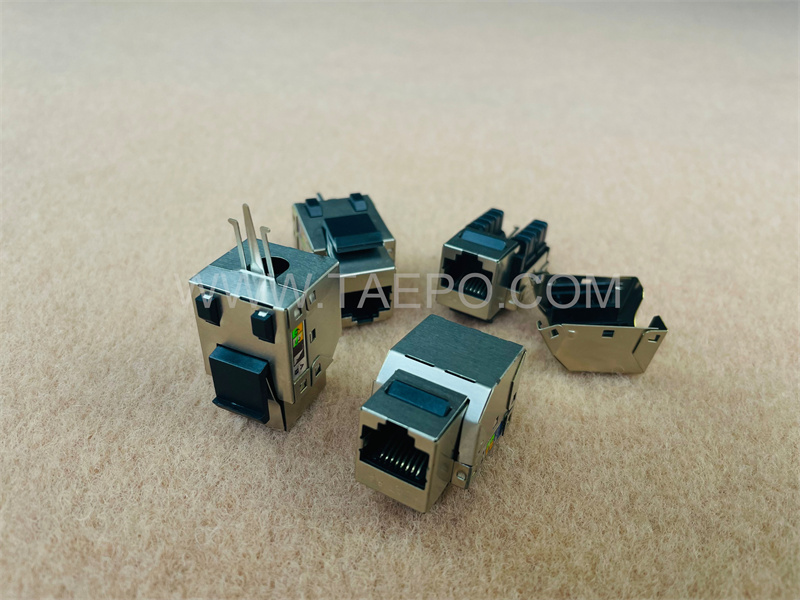

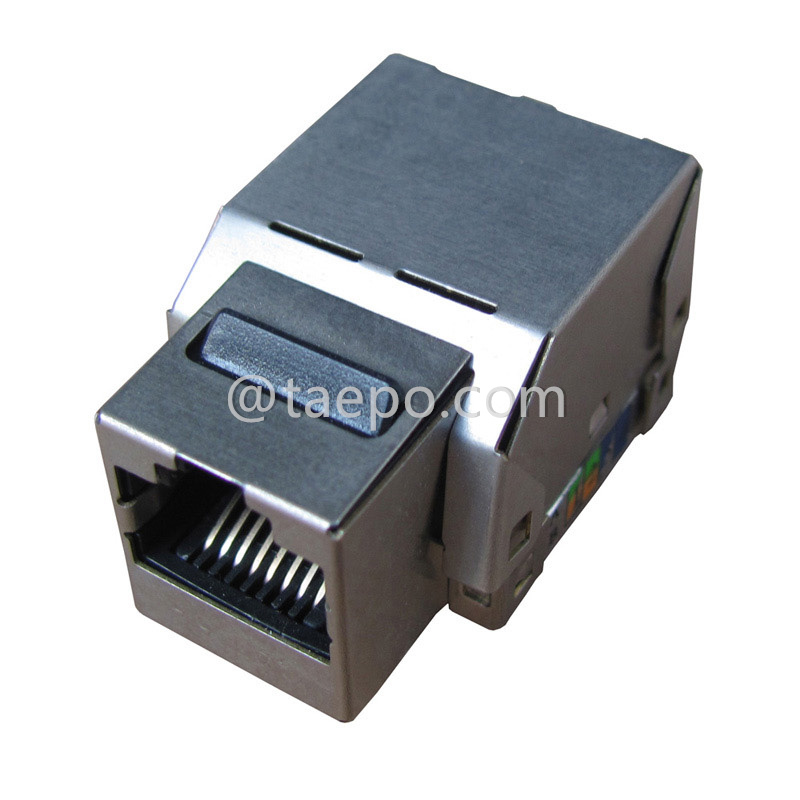

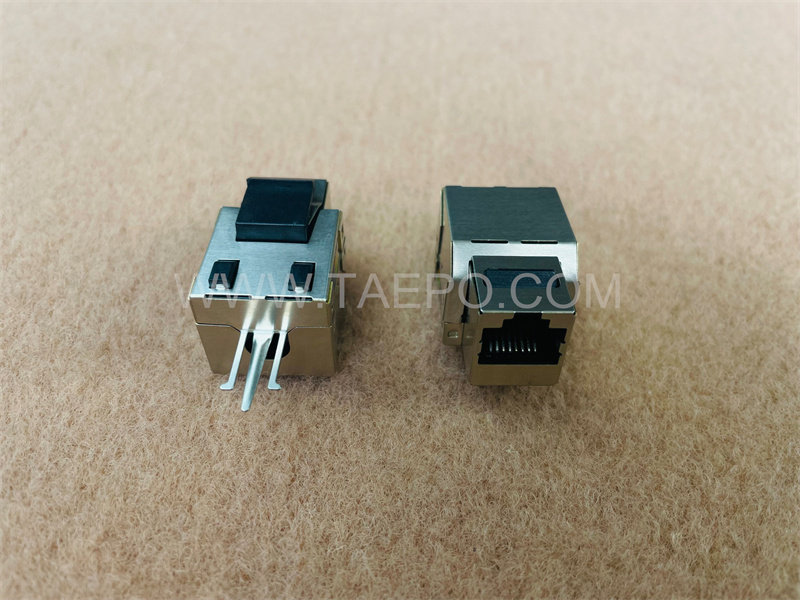

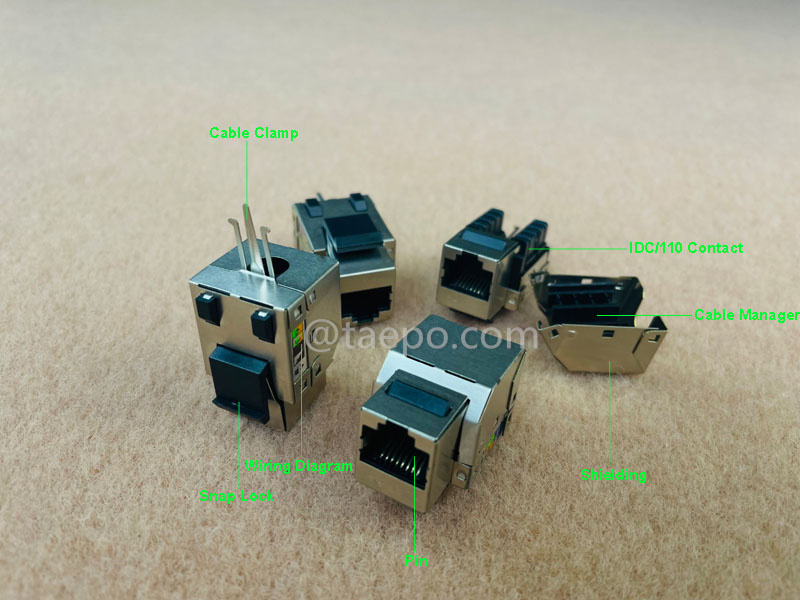

ILLUSTRATION PICTURES

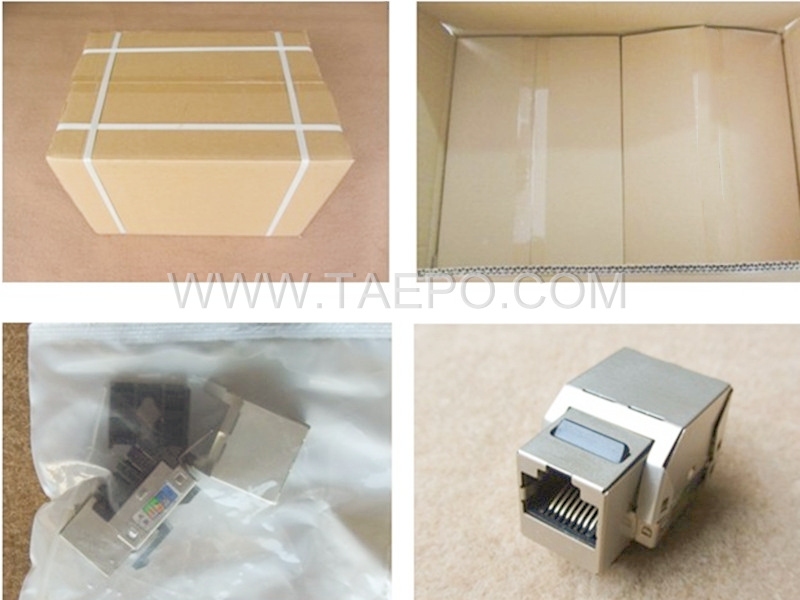

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5202-C5ES8 |
Keystone jack, CAT5E, STP, 8P8C, 90 degree, AP style |
RELATED PRODUCTS

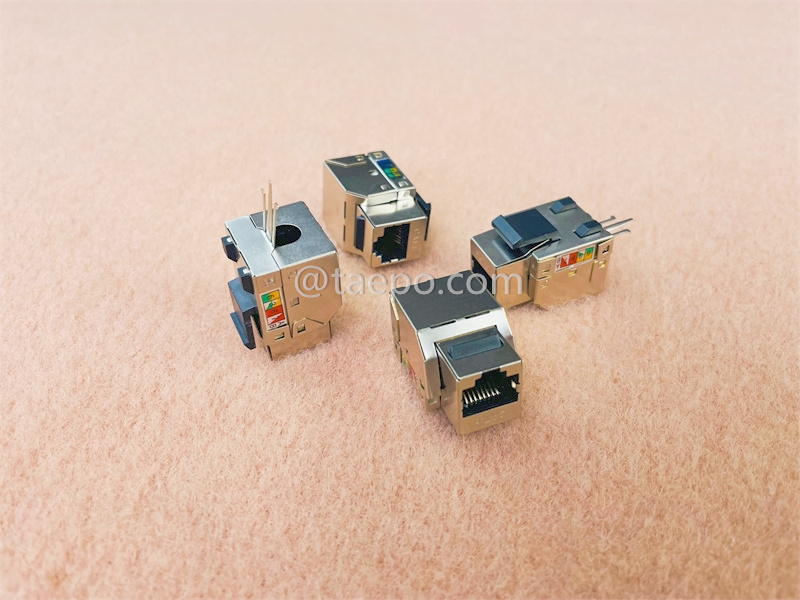

TP-5202-C6S8 Keystone jack, CAT6, STP, 8P8C, 90 degree, AP style
