What is Keystone Jack used for?
DESCRIPTIONS

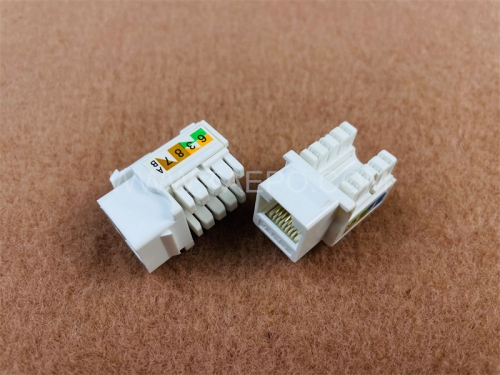

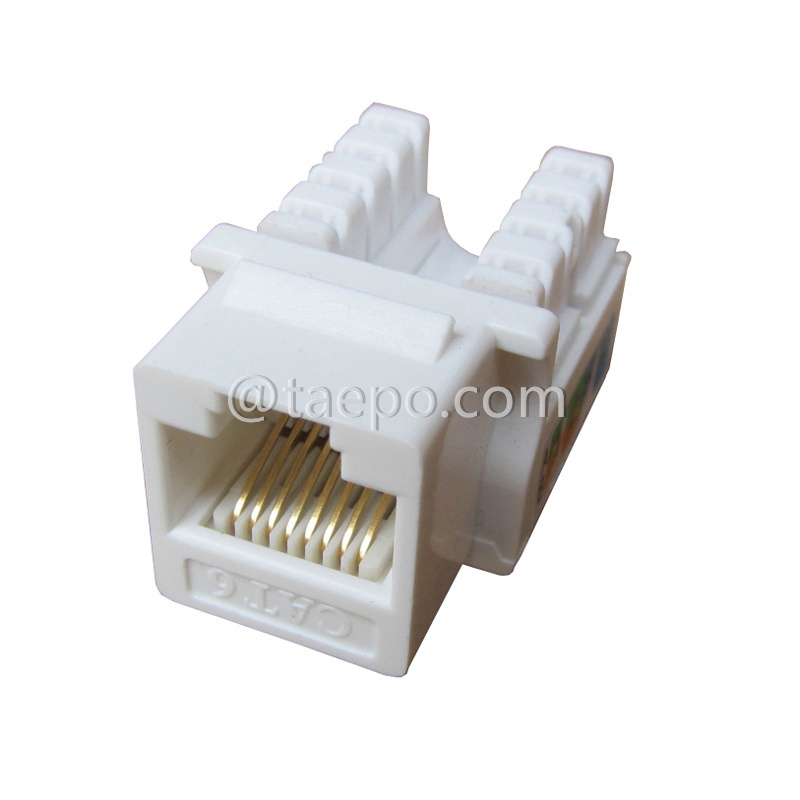

This keystone jack (TP-5202-C6U8) is designed for CAT6 applications, providing high-performance networking for data transmission at speeds up to 10Gbps. It is a UTP (Unshielded Twisted Pair) type, meaning it helps reduce interference while maintaining the signal integrity necessary for high-speed communication. With an 8P8C (8 Position 8 Contact) configuration, this jack is perfect for Ethernet connections, offering reliability and robust performance.
The 90-degree design allows for easy and space-efficient installations, particularly in environments with limited space. It is suitable for both residential and commercial applications, supporting various networking needs including internet, voice, and video. The AP (Angled Panel) style gives it a user-friendly installation process, making it easier to organize cables without putting undue stress on the wiring.
This keystone jack is compatible with standard keystone panels, faceplates, and surface-mount boxes, making it a versatile solution for any structured cabling system. Its durable construction ensures long-lasting performance and the ability to handle the demands of modern networking environments.
MAIN FEATURES
- CAT6 rated for up to 10Gbps data transmission.
- UTP (Unshielded Twisted Pair) construction for interference reduction.
- 8P8C (8 Position 8 Contact) configuration.
- 90-degree design for easier cable management.
- AP (Angled Panel) style for user-friendly installation.
- Gold-plated contacts for enhanced conductivity.
- Compatible with standard keystone panels and faceplates.
- Tool-less termination for quicker installations.
- Suitable for both residential and commercial use.
- Designed for Ethernet connections.
- High-impact plastic housing for durability.
- Color-coded wiring label for easy termination.
- IDC (Insulation Displacement Contact) termination.
- Operating temperature: -10°C to +60°C.
- Compact and space-saving design.
- Available in multiple colors for cable management and identification.

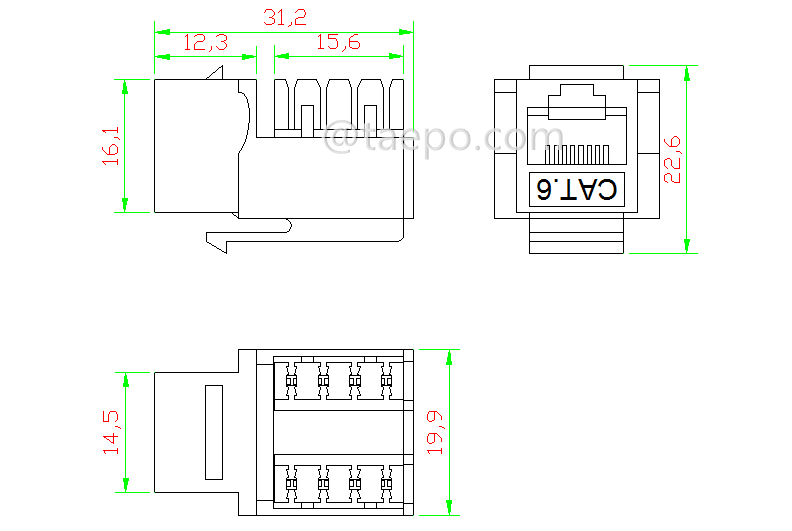

SCHEMATIC DIAGRAMS

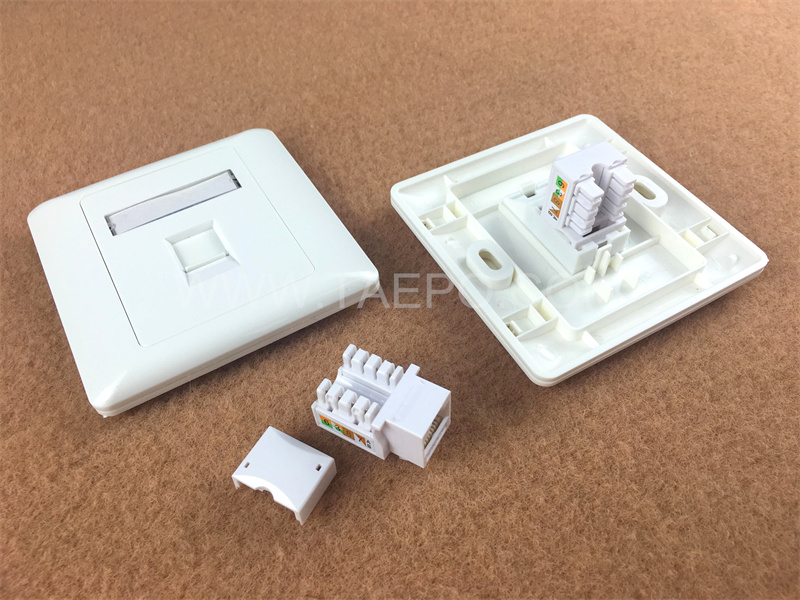

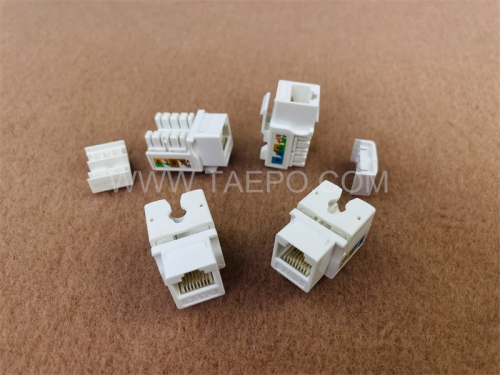

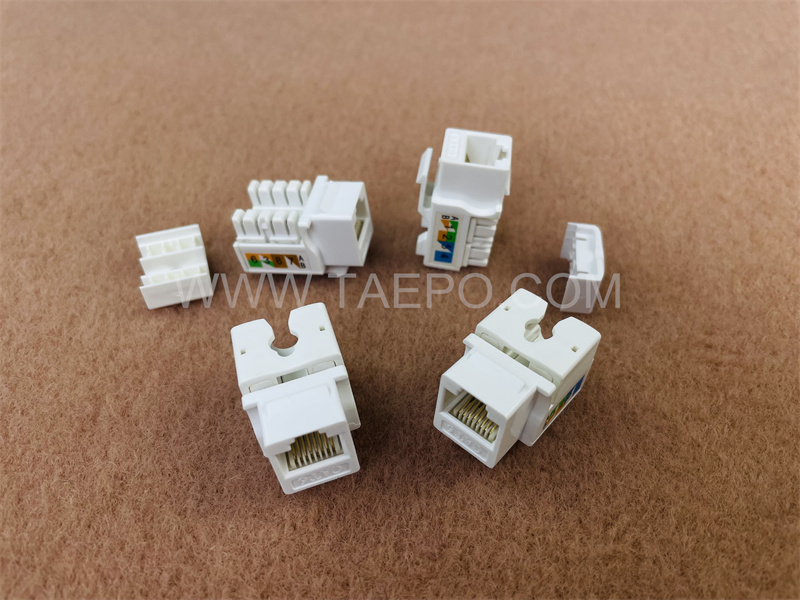

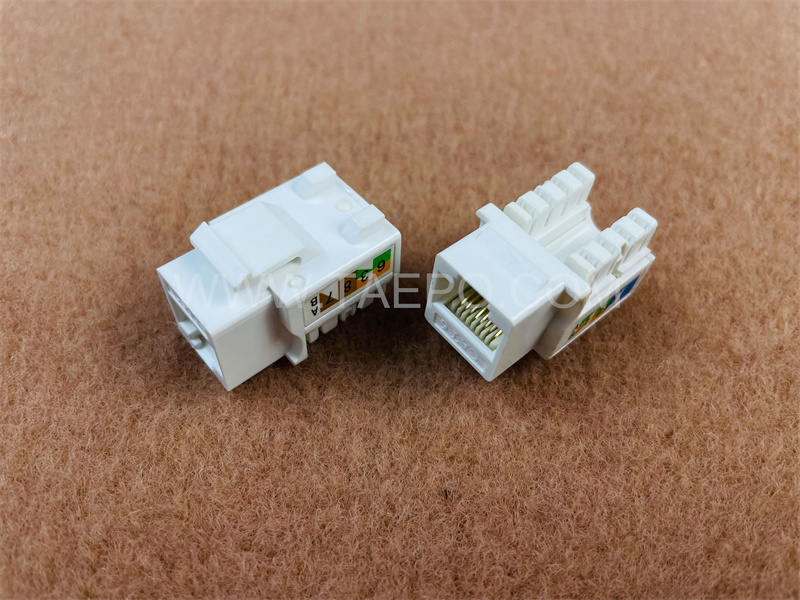

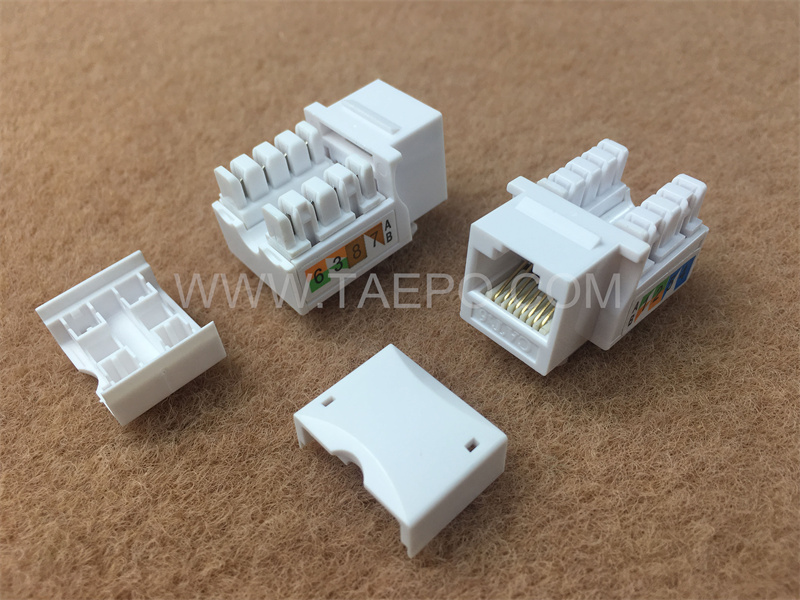

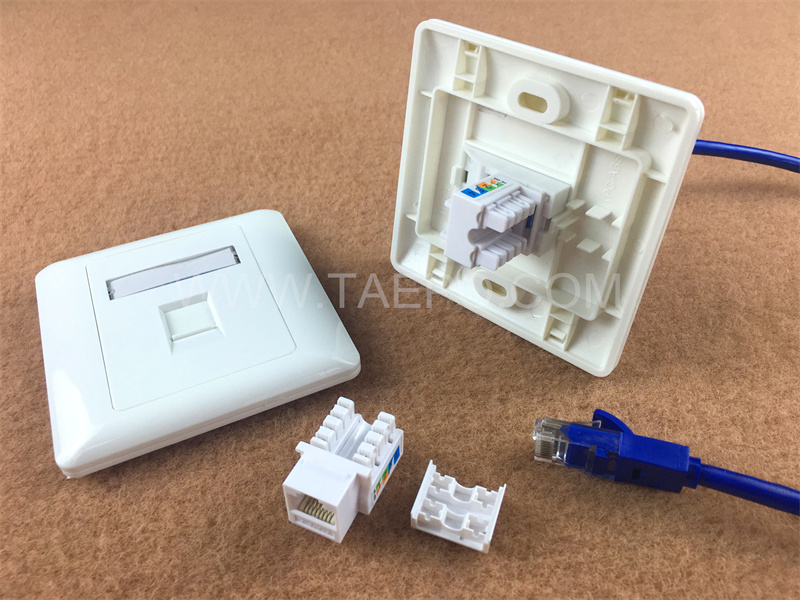

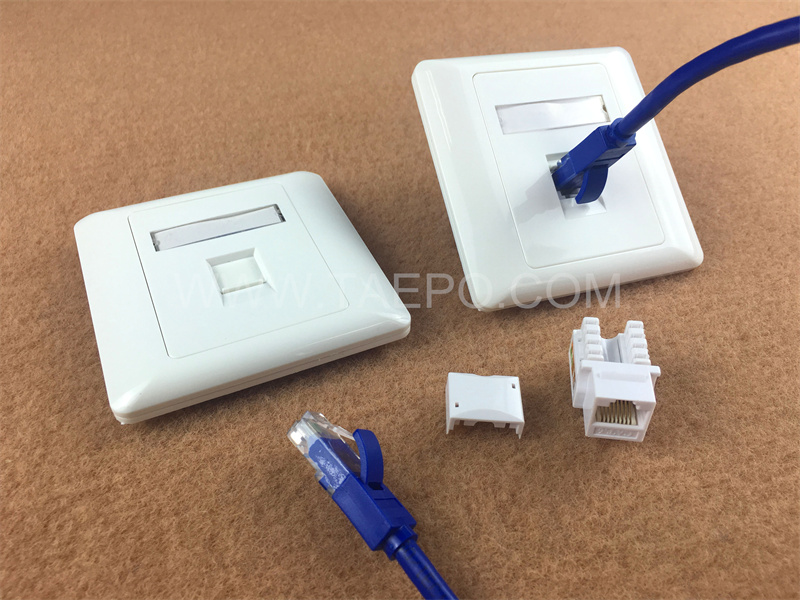

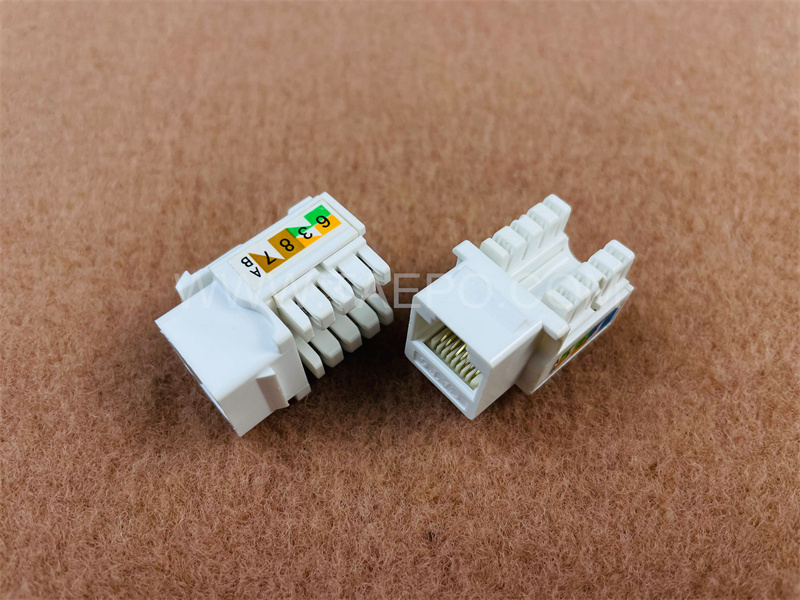

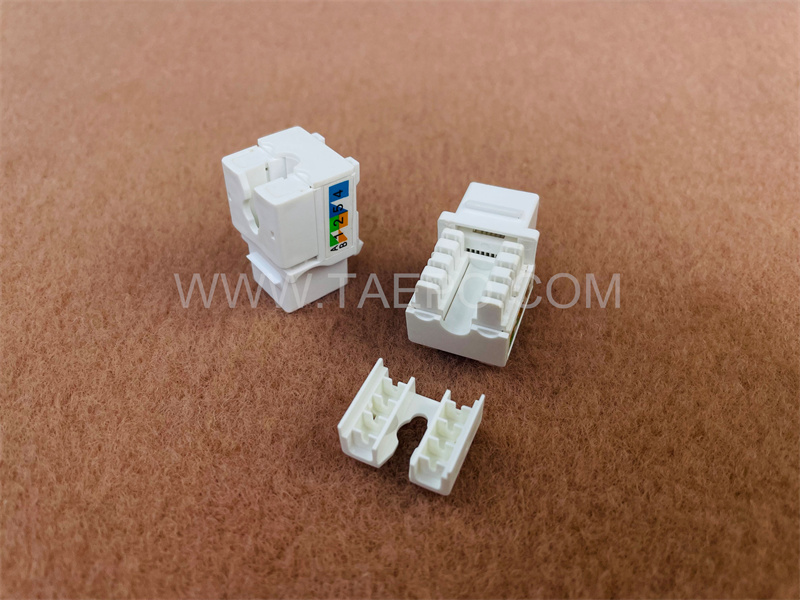

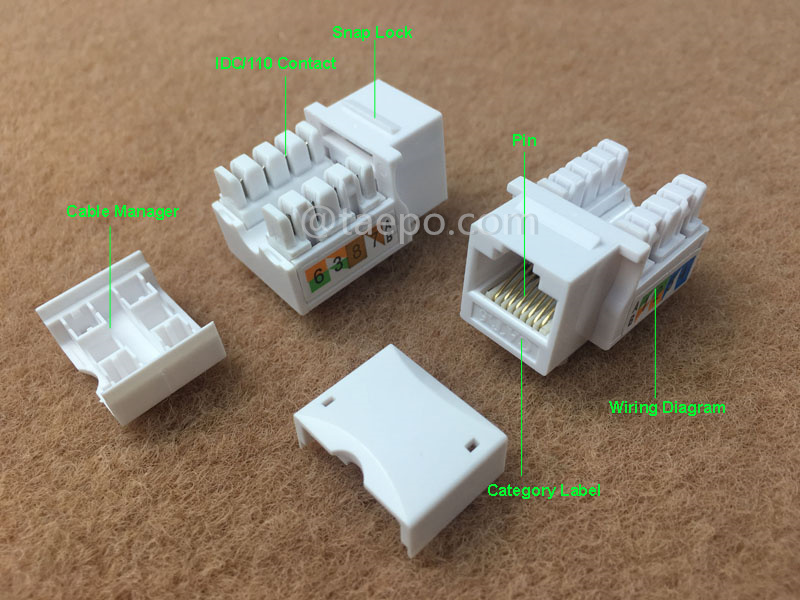

ILLUSTRATION PICTURES

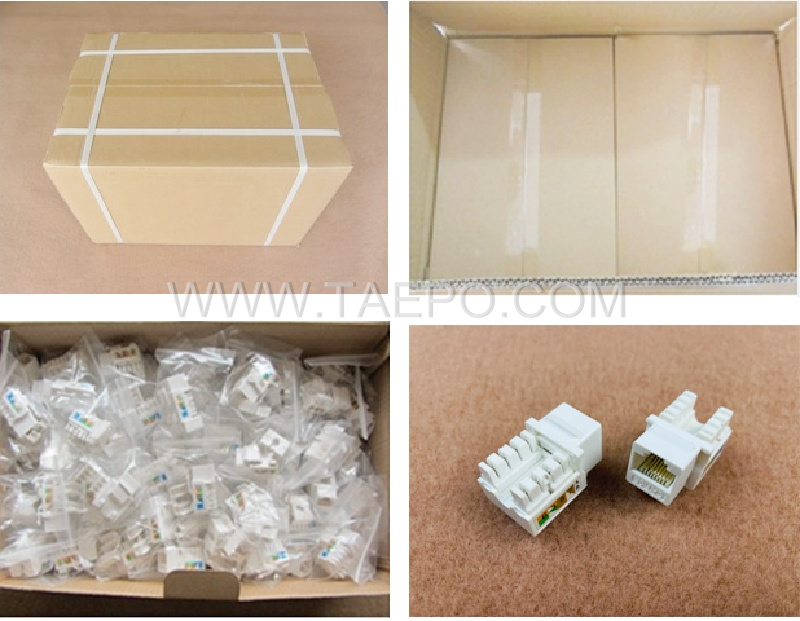

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-5202-C6U8 |
Keystone jack, CAT6, UTP, 8P8C, 90 degree, AP style |
