1 pair MDF protector for LSA module, against over-voltage protection

TAEPO - Professional Chinese Manufacturer Delivering MDF Protector with Reliable Performance!
What is MDF Protector Used for?


    DESCRIPTIONS

1 pairs MDF protector (TP-1501-1DG) is is specifically designed to provide reliable over-voltage protection for telecommunication lines, ensuring the safety of sensitive equipment and continuity of service. Installed directly into the distribution network, it safeguards against transient surges caused by lightning strikes, switching operations, and other unexpected electrical disturbances.

This protection device is ideal for use with LSA modules and can be easily integrated into Main Distribution Frames (MDF), which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.
• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
• The outside line directly collides against a 220 V power line.

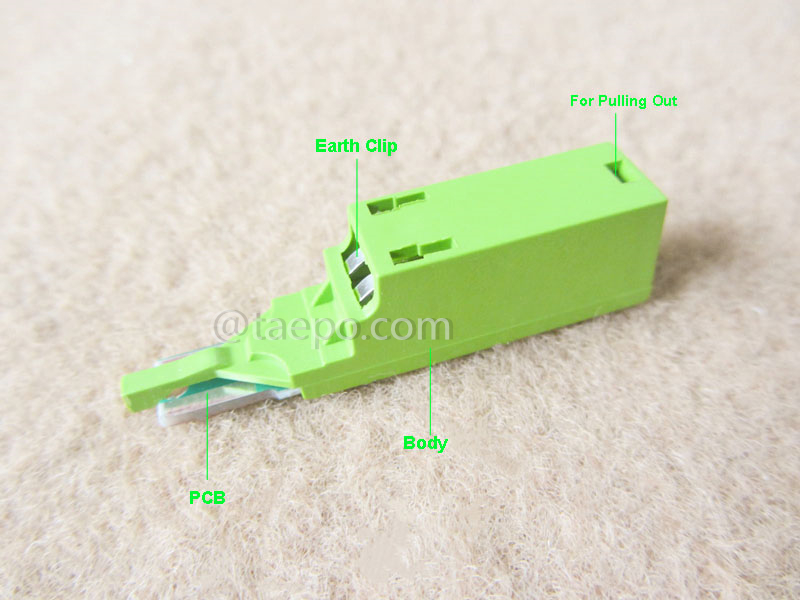

The housing of the protector is flame retardant, high temperature resistance and aging resistance. It is 1 pair modular design protector, also called Mini PEI.

    MAIN FEATURES

• Compatible with LSA Modules: Specifically designed for use with standard LSA modules in MDF installations.
• Fast Response Time: Activates within microseconds to quickly suppress dangerous surges before equipment can be damaged.
• Compact Construction: Slim and lightweight design allows for easy integration into existing MDF systems without space concerns.
• Modular Single Pair Design: Designed to protect one pair independently, allowing targeted protection without affecting other line pairs.
• Easy Installations: Plug-in construction enables quick fitting into MDF systems without tools or complex procedures.
• Maintenance Free: Works automatically after installation, requiring no routine checks or servicing.
• Reliable Connections: Ensures stable contact with LSA terminals using durable, corrosion-resistant materials.
• Graded 3 Point Protection: Provides staged surge suppression to handle low, medium, and high surge levels effectively.
• Fail Safe (FS) Function: Incorporates a built-in mechanism that safely disconnects in case of overload or failure.
• Total Front Operations: All installation, connection, and replacement steps can be done from the front for easier handling.

    INSTALLATION VIDEOS

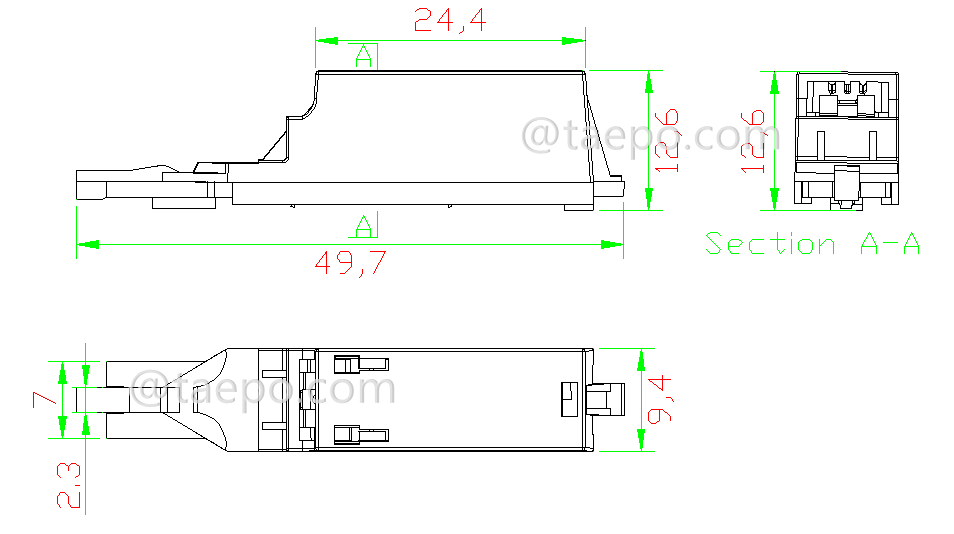

    SCHEMATIC DIAGRAMS

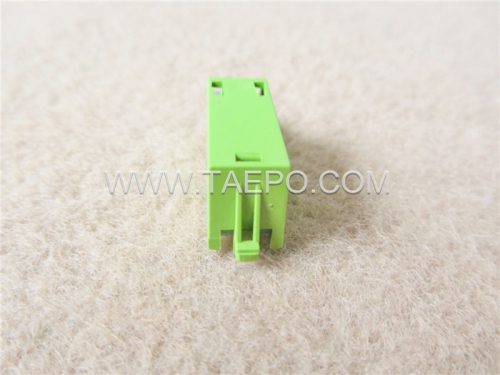

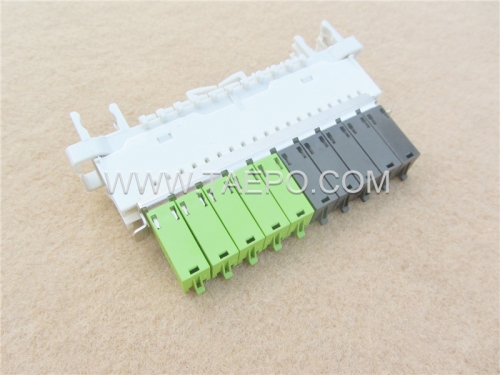

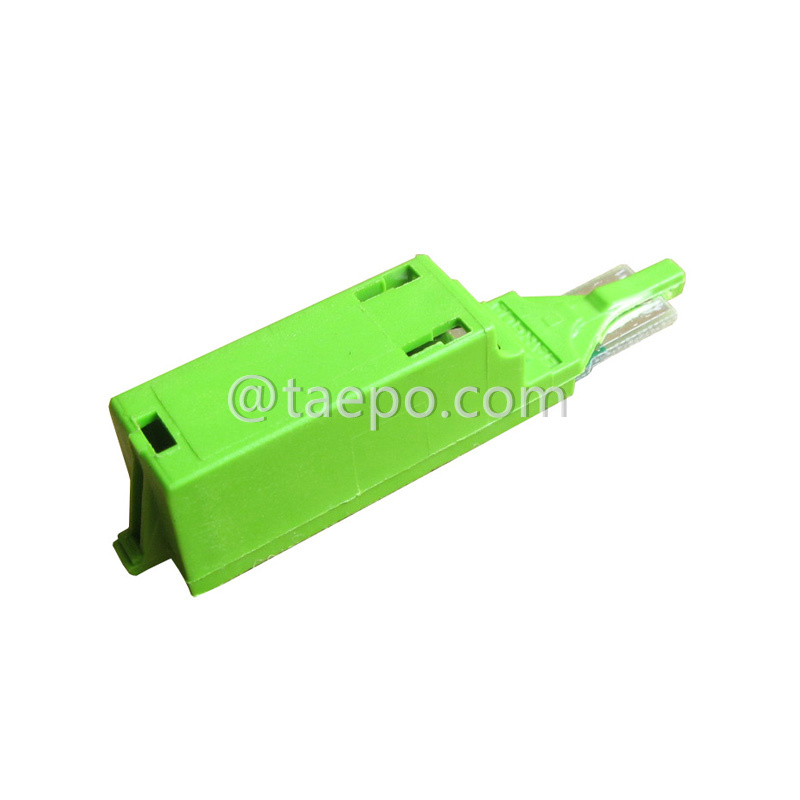

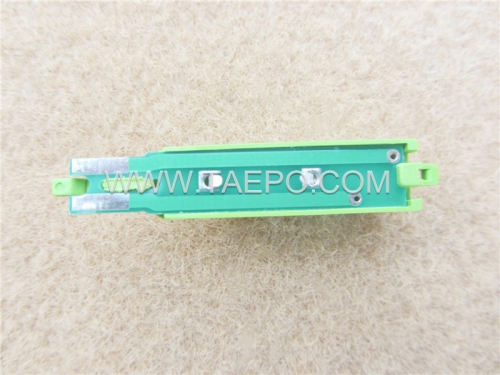

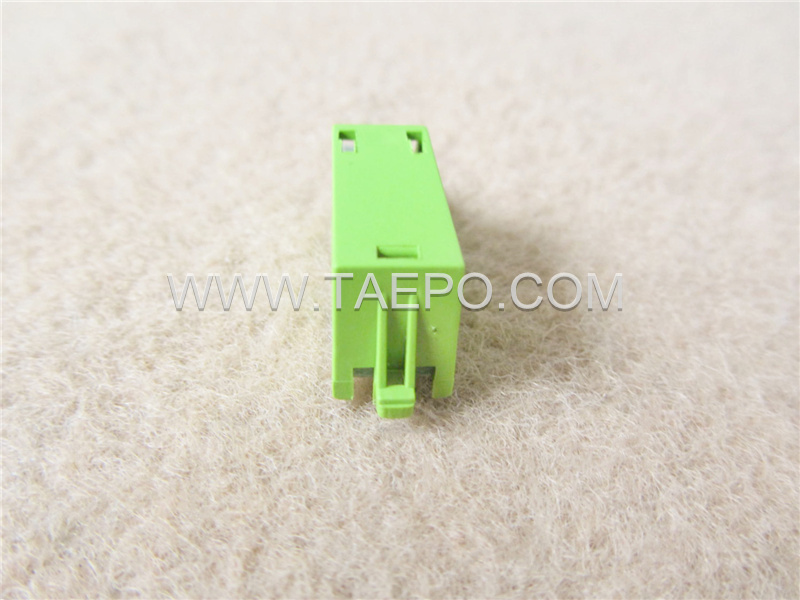

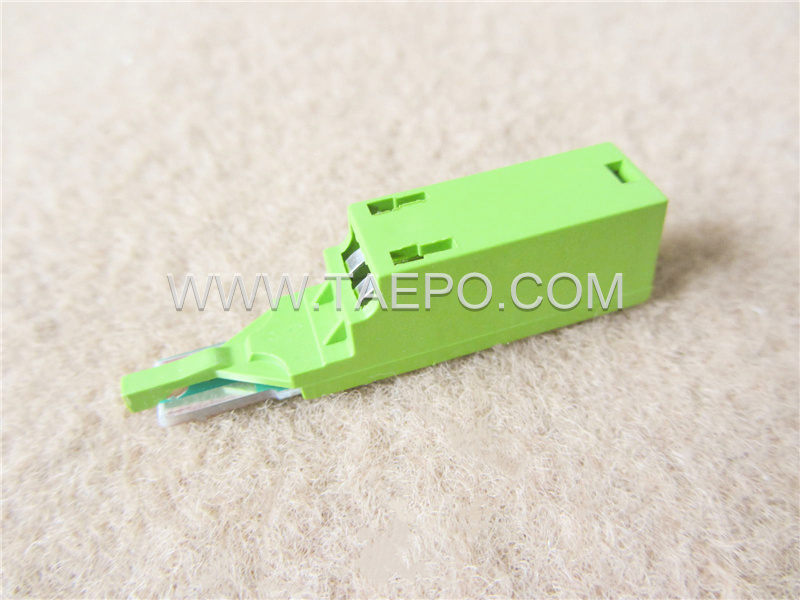

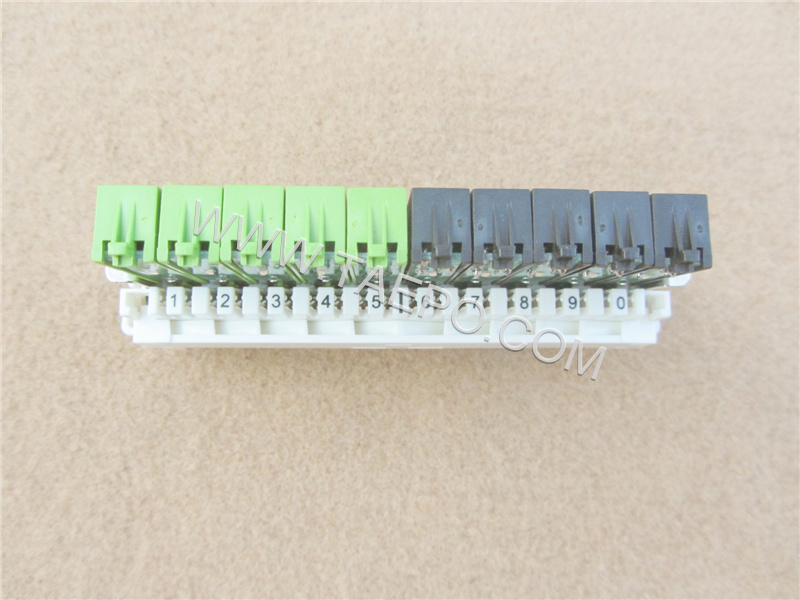

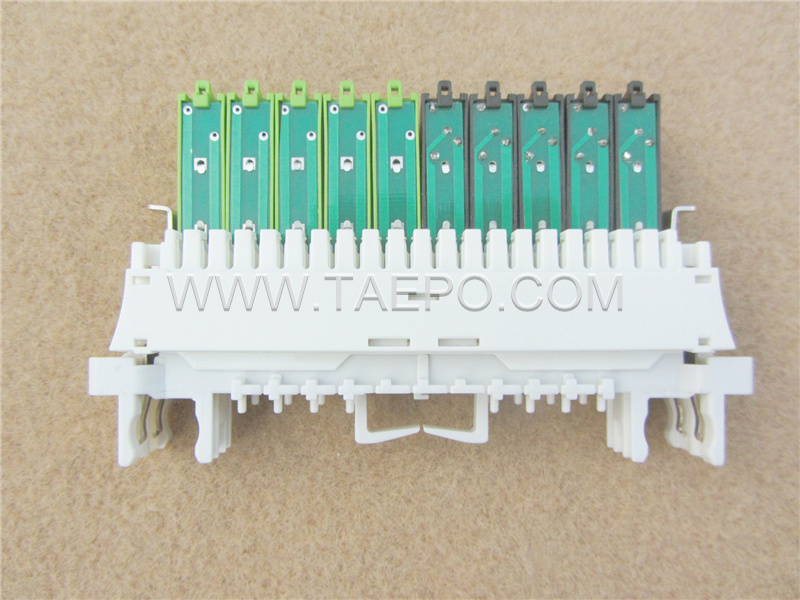

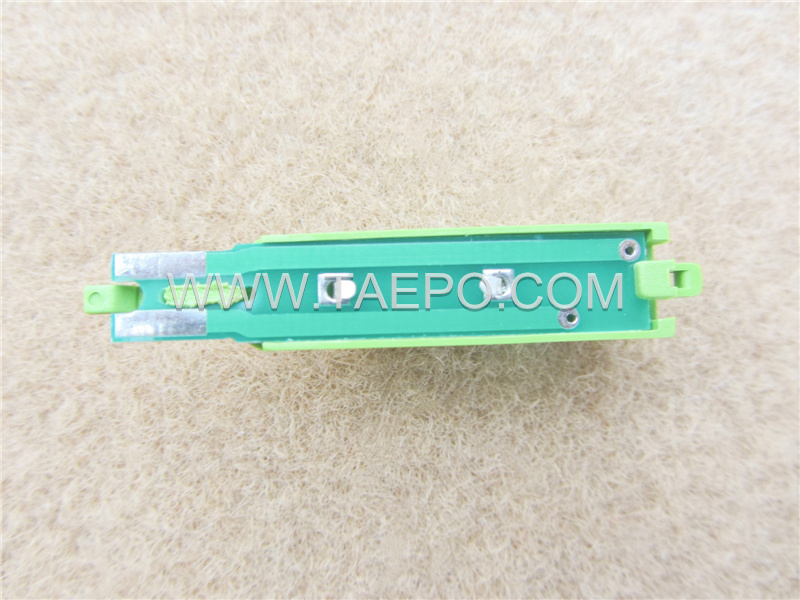

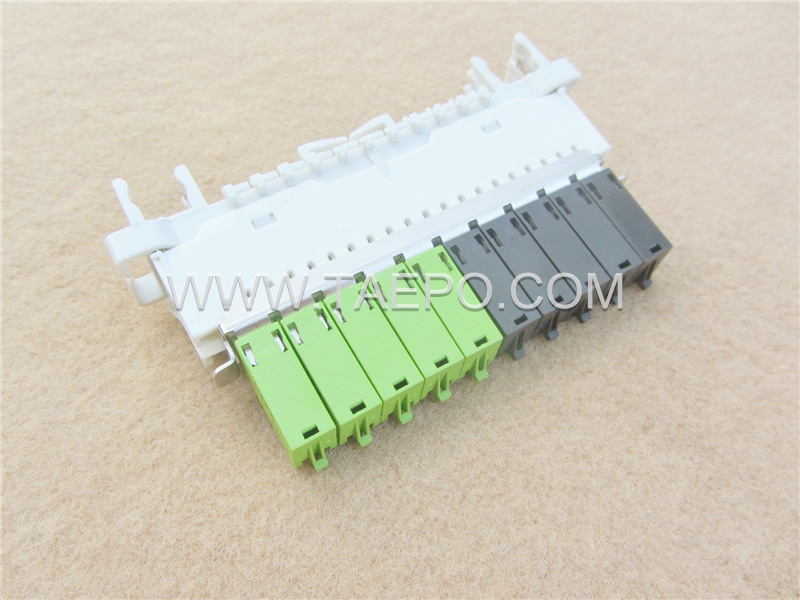

    ILLUSTRATION PICTURES

    PACKING PICTURES

    ORDER DATA
