1 pair MDF protector for LSA profile highband module, against over-voltage protection

TAEPO - Your Go-To Chinese Manufacturer for 1 Pair MDF Protector, Professional Engineering Meets Timely Delivery
What is 1 Pair MDF Protector used for?


    DESCRIPTIONS

1 pairs MDF protector (TP-1501-1FG) is used for LSA profile highband modules, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.
• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
• The outside line directly collides against a 220 V power line.


The housing of the protector is flame retardant, high temperature resistance and aging resistance. It is 1 pair modular design protector.

Built with high-quality components, the protector delivers rapid response, reliable performance, and a long operational lifespan. It is maintenance-free, compact in size, and suitable for use in environments with high density of connections, ensuring dependable performance across large telecom infrastructures.

    MAIN FEATURES

• Compatible with LSA Modules: Specifically designed for use with LSA highband modules in MDF installations.
• Fast Response Time: Activates within microseconds to quickly suppress dangerous surges before equipment can be damaged.
• Compact Construction: Slim and lightweight design allows for easy integration into existing MDF systems without space concerns.
• Modular Single Pair Design: Designed to protect one pair independently, allowing targeted protection without affecting other line pairs.
• Easy Installations: Plug-in construction enables quick fitting into MDF systems without tools or complex procedures.
• Maintenance Free: Works automatically after installation, requiring no routine checks or servicing.
• Reliable Connections: Ensures stable contact with LSA terminals using durable, corrosion-resistant materials.
• Graded 3 Point Protection: Provides staged surge suppression to handle low, medium, and high surge levels effectively.
• Fail Safe (FS) Function: Incorporates a built-in mechanism that safely disconnects in case of overload or failure.
• Total Front Operations: All installation, connection, and replacement steps can be done from the front for easier handling.

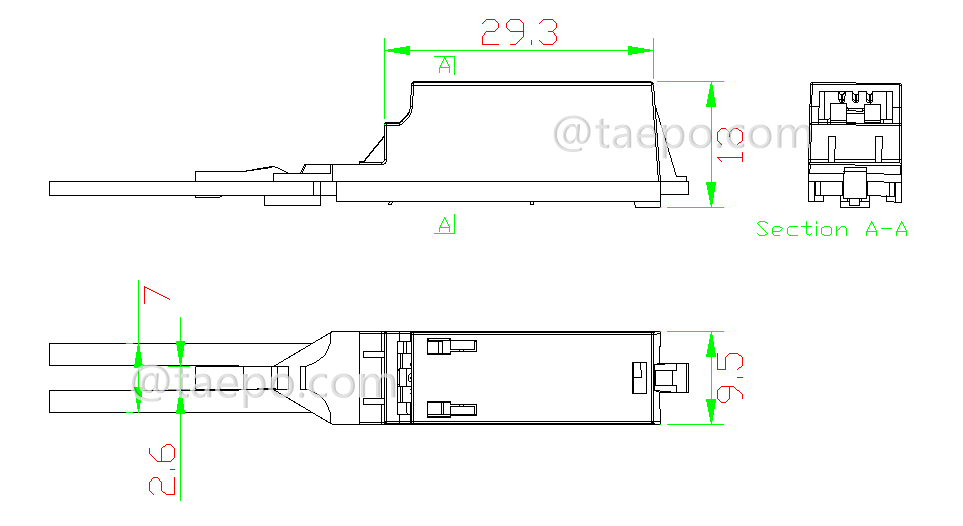

    SCHEMATIC DIAGRAMS

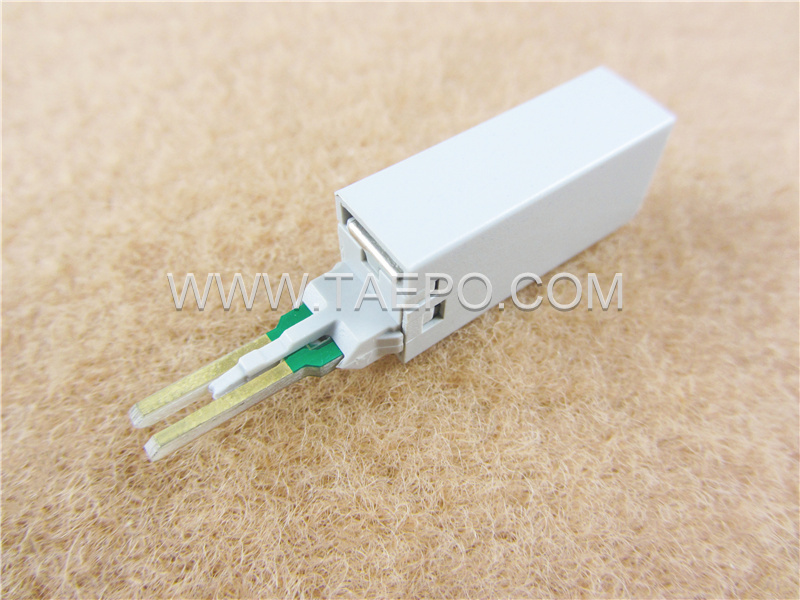

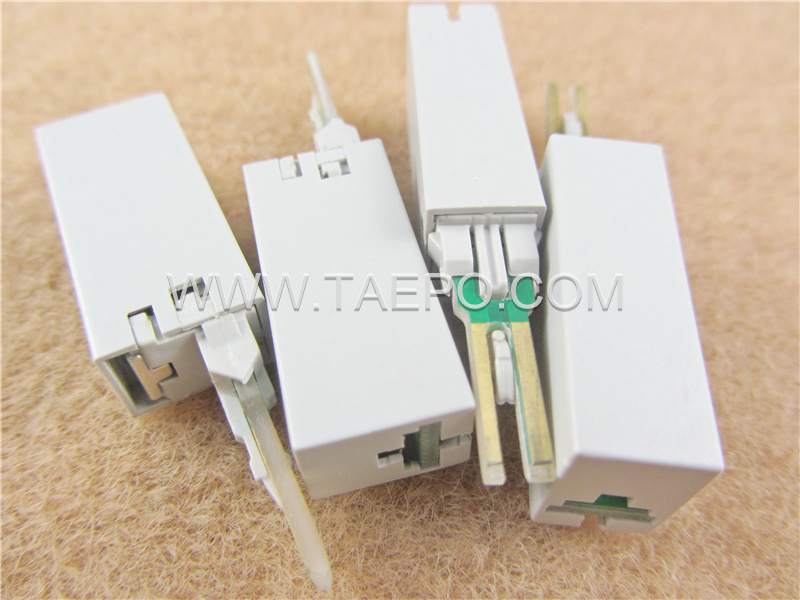

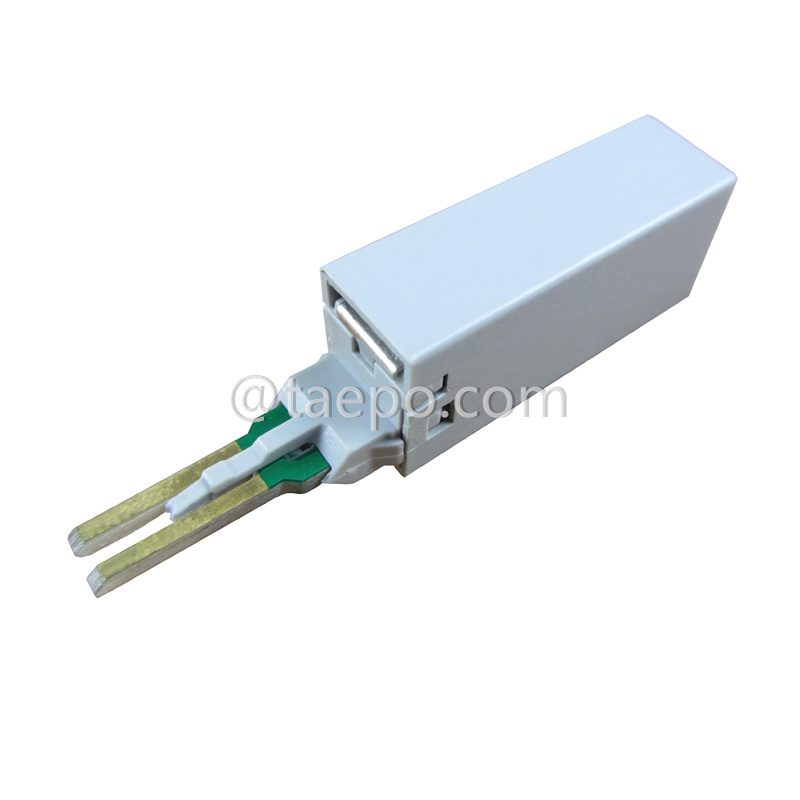

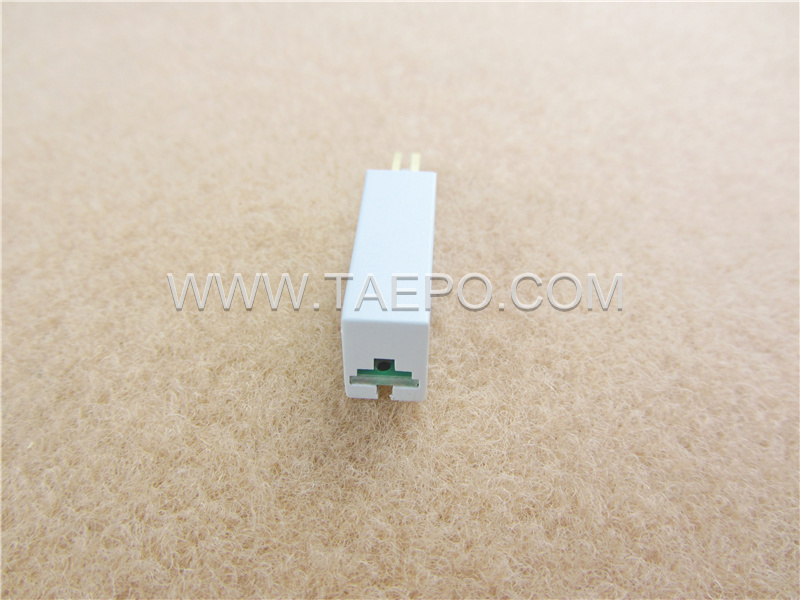

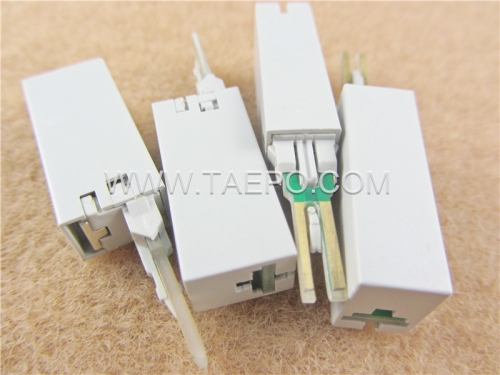

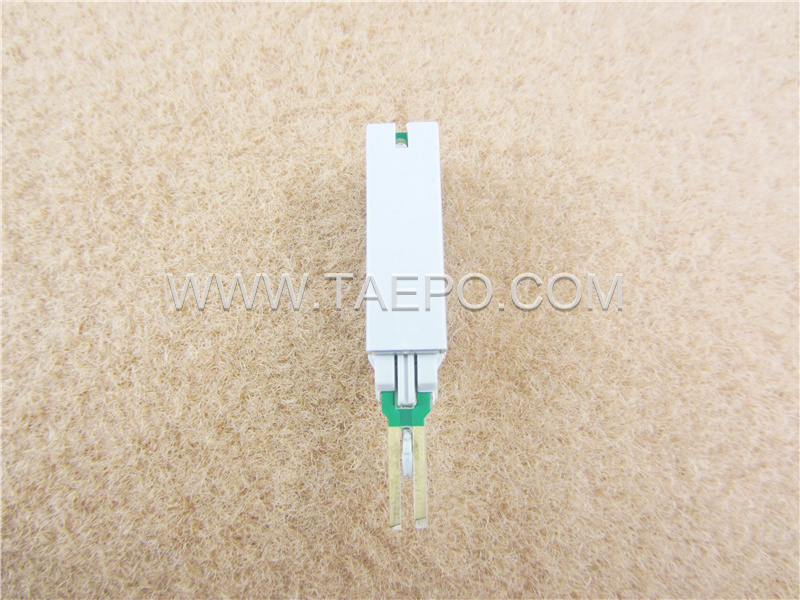

    ILLUSTRATION PICTURES

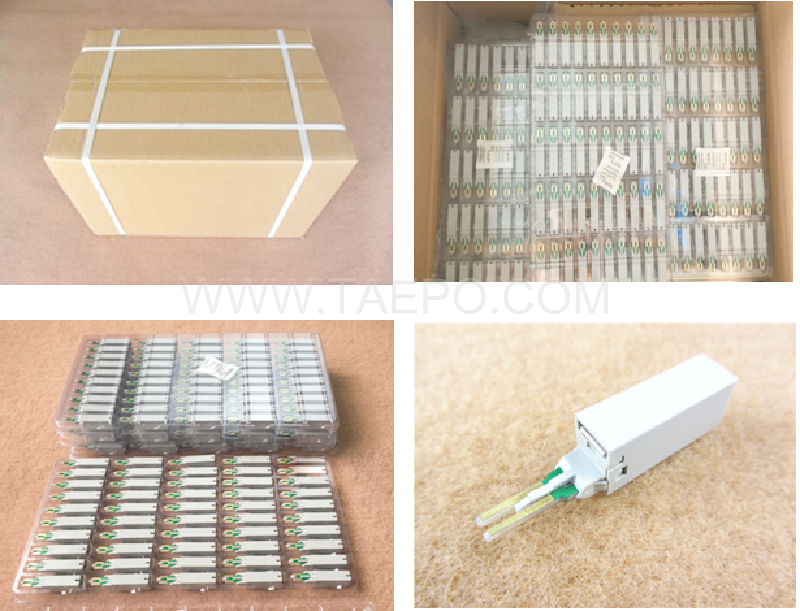

    PACKING PICTURES

    ORDER DATA
