Fiber distribution box (FDB), outdoor, SC, 72 fibers, with replaceable patch panels, cold rolling steel housing with powder coating

TAEPO - Specialized in Fiber Optic Distribution Box (FDB), Your Professional Chinese Manufacturing Partner !
What is Fiber Optic Distribution Box (FDB), used for?


    DESCRIPTIONS

The fiber distribution box (TP-3229-72) is a high-capacity outdoor fiber distribution solution, designed to manage up to 72 fibers using SC connectors. This box is built with replaceable patch panels, allowing for easy upgrades and customization as network needs evolve. Constructed from cold-rolled steel with a robust powder coating, it offers superior protection against harsh weather, UV exposure, and physical damage, making it suitable for outdoor environments.

With dimensions of 550x450x120mm, this FDB provides ample space for organized fiber management while remaining compact enough for space-constrained installations. The modular design without pre-installed adapters or pigtails allows network installers to select the components that best suit their requirements. This level of customization ensures greater flexibility and adaptability in large-scale network deployments.

Ideal for telecommunications, fiber-to-the-home (FTTH), and data center applications, this FDB offers the perfect balance between capacity, durability, and ease of installation. The cold-rolled steel housing and weatherproof design ensure that the fibers are well-protected, even in the most demanding environments.

    MAIN FEATURES

• 72 Fiber Capacity: Supports up to 72 fibers, ideal for large-scale network infrastructures.

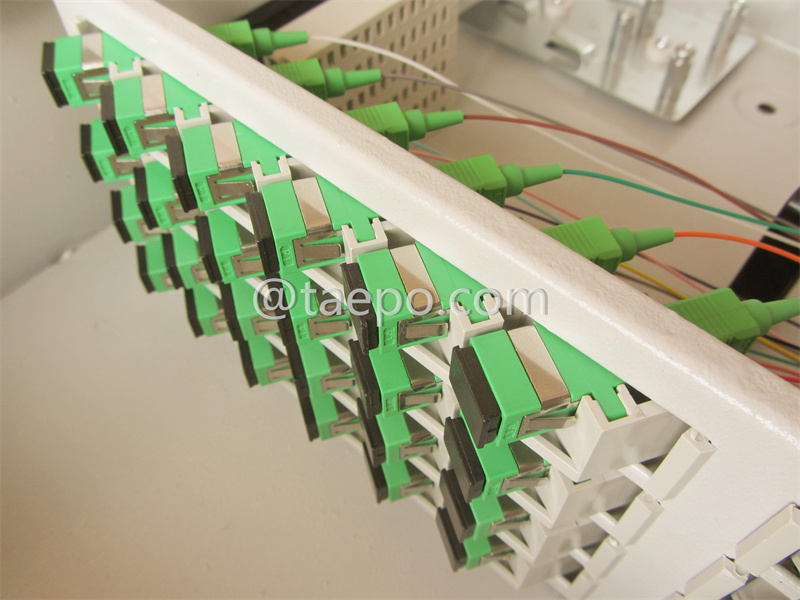

• SC Connectors: Designed to house SC connectors for consistent and reliable fiber optic connections.
• Cold-Rolled Steel Housing: Provides exceptional durability and impact resistance in outdoor environments.
• Powder Coating Finish: Corrosion-resistant powder coating for long-lasting protection from environmental conditions.
• Large Form Factor: 550x450x120mm design accommodates high-density fiber networks.
• Weatherproof: Sealed enclosure to prevent dust and water ingress, ensuring long-term network reliability.
• Optional Equipment Adapters or Pigtails: Delivered with or without adapters or pigtails, allowing customization based on installation needs.
• Secure Locking Mechanism: Lockable enclosure for protection against tampering and unauthorized access.
• Efficient Cable Management: Integrated cable routing guides for clean, organized installation.
• Corrosion Resistant: Cold-rolled steel with powder coating offers superior corrosion resistance in outdoor conditions.
• Multiple Mounting Options: Supports wall or pole mounting for versatile installation scenarios.
• UV Protection: The powder coating is UV-stabilized to prevent degradation due to sun exposure.
• Impact Resistant: Steel construction provides excellent protection against physical damage.
• Ventilation Slots: Built-in ventilation to prevent overheating and manage internal temperature.

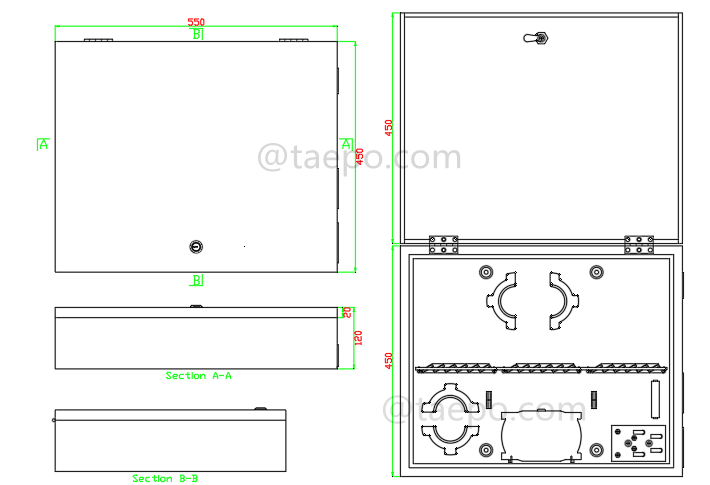

    SCHEMATIC DIAGRAMS

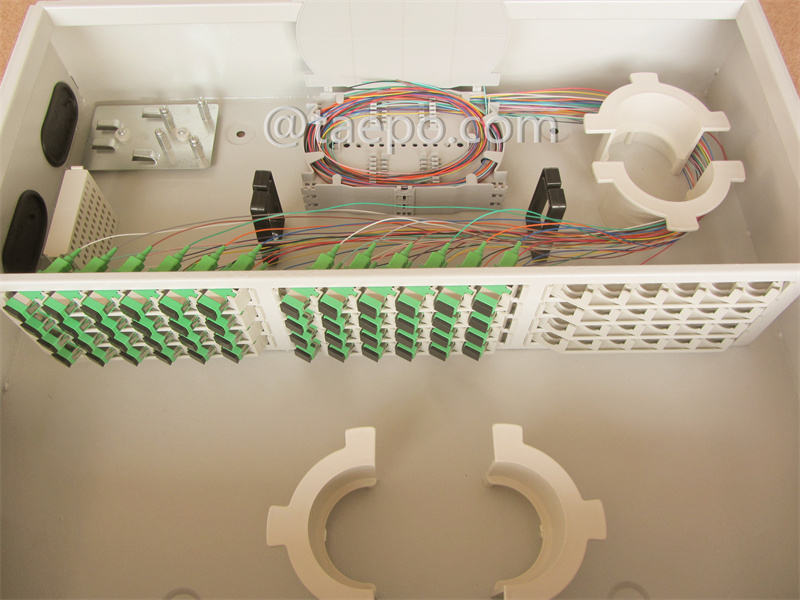

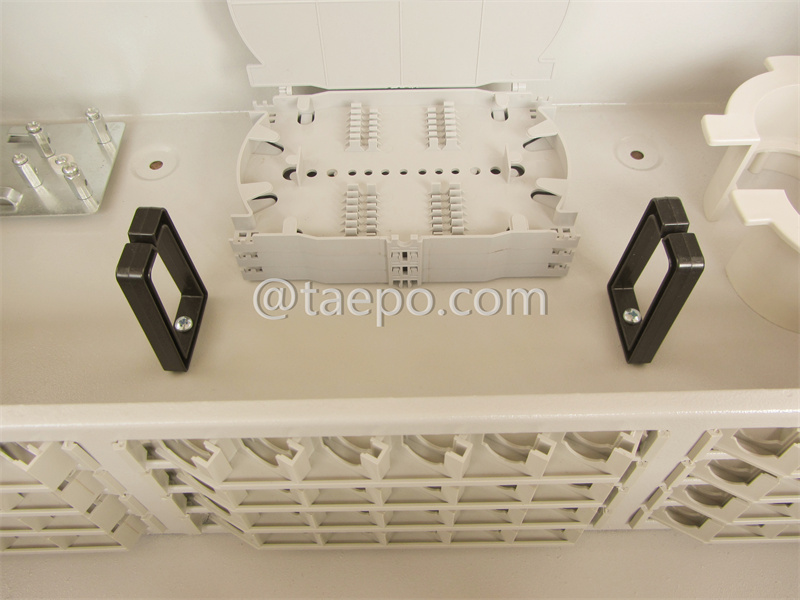

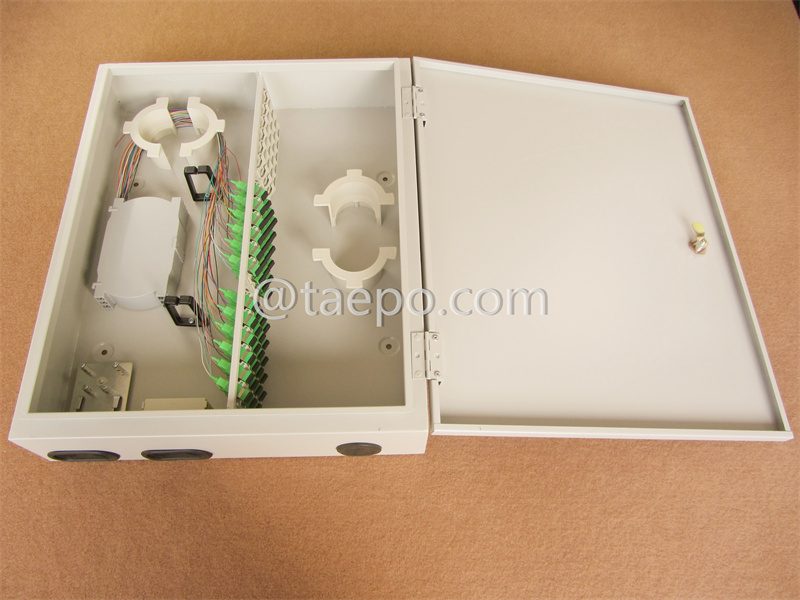

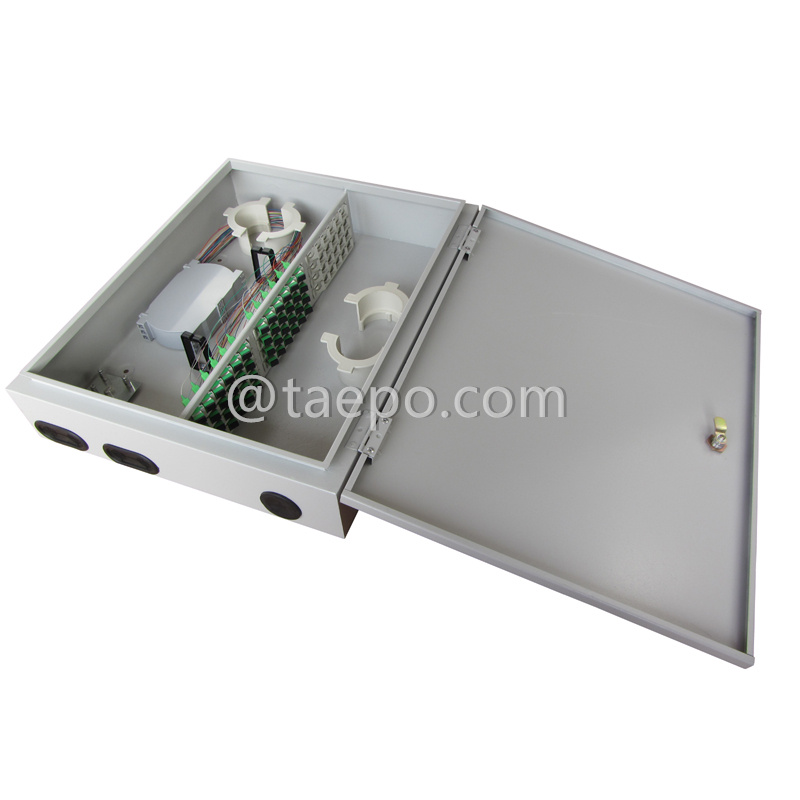

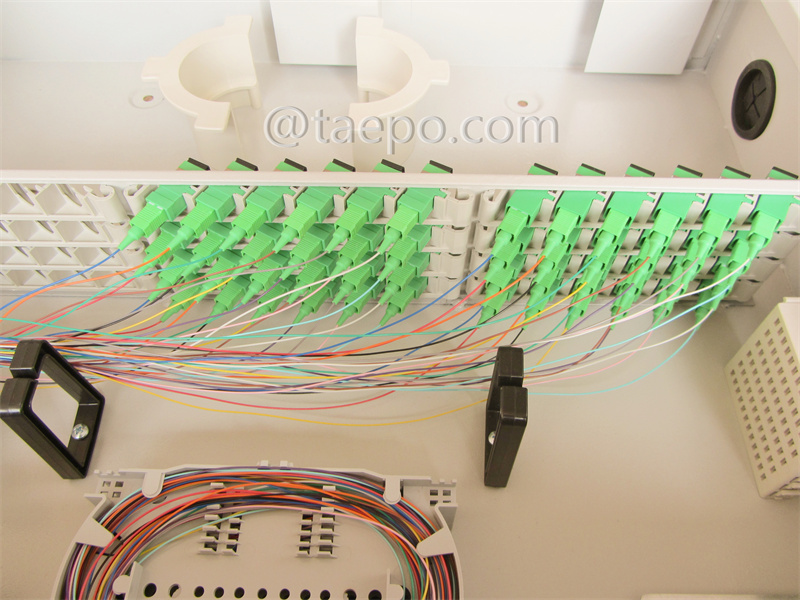

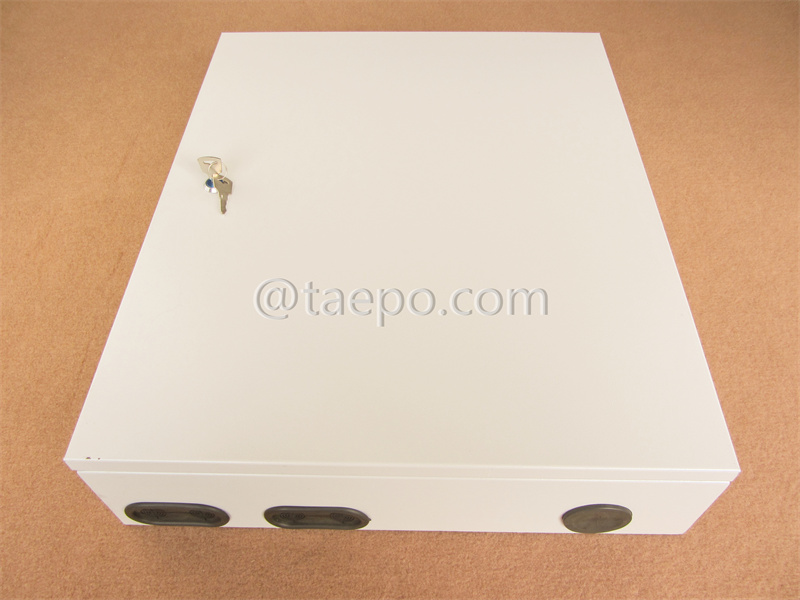

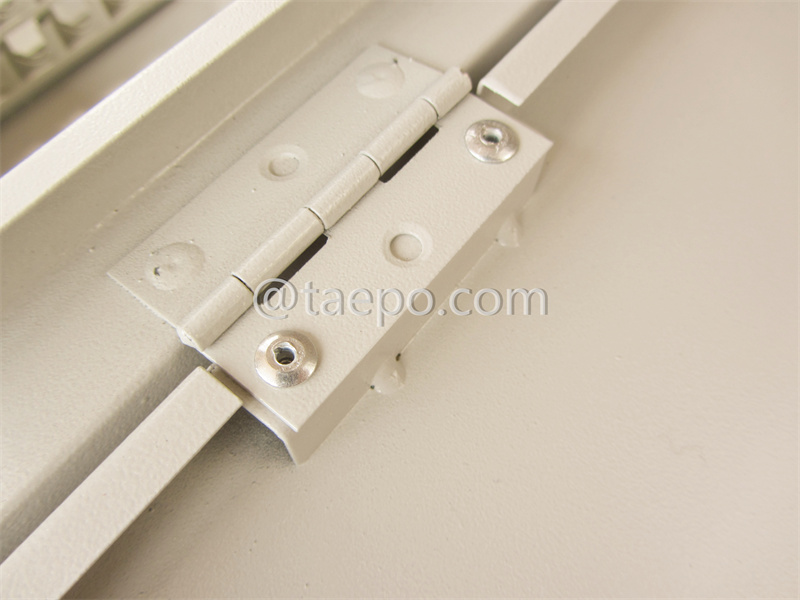

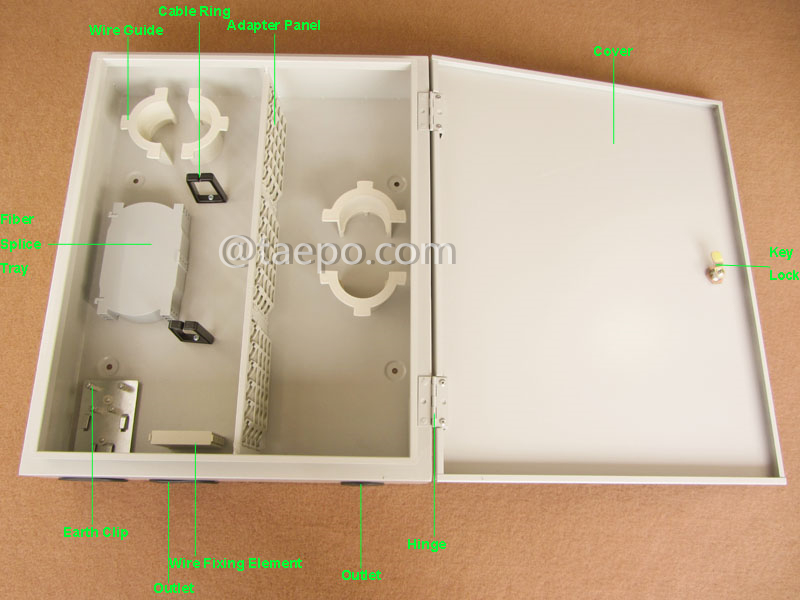

    ILLUSTRATION PICTURES

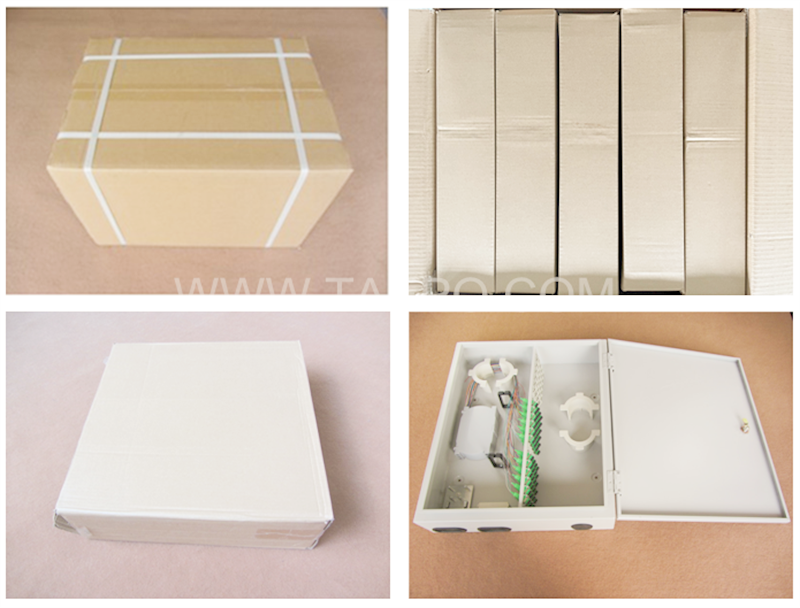

    PACKING PICTURES

    ORDER DATA
