Fiber optic splice closure (FOSC), horizontal type, mechanical sealing, 12 fibers, max 96 bunchy fibers

TAEPO - Your Professional Source for Fiber Optic Splice Closure(FOSC), Expert Chinese Manufacturing at Its Best !
What does Fiber Optic Splice Closure do?


    DESCRIPTIONS

This horizontal-type fiber optic splice closure (TP-3524-12) is designed for medium-capacity fiber optic network installations, offering reliable protection and management for fiber splices in outdoor or harsh environments. With mechanical sealing, the closure allows for fast, tool-free installation, reducing setup time and ensuring a tight, secure seal without the need for heat or adhesives. It supports 12 fiber splices and can handle up to 96 bunchy fibers, making it ideal for medium-sized network deployments such as Fiber to the Building (FTTB) and smaller optical distribution networks.

The FOSC is designed with a single inlet and a single outlet, suitable for cables with a maximum diameter of 14 mm. Its compact size of 282x200x90 mm makes it easy to install in both underground and aerial applications, while still providing ample space for fiber management. The mechanical sealing system protects the internal components from water, dust, and other environmental hazards, ensuring the long-term integrity of the fiber network. Constructed from durable, UV-resistant materials, this closure is built to withstand the elements and deliver reliable performance in any outdoor setting.

The FOSC is engineered for easy re-entry, allowing network technicians to quickly perform maintenance or upgrades without disrupting the fiber network. Its combination of compact design, robust sealing, and flexible capacity makes it an excellent choice for medium-scale fiber optic networks requiring reliable and low-maintenance splice protection.

    MAIN FEATURES

• Horizontal Design: Efficient rectangular shape for easy placement in confined spaces.
• Mechanical Sealing: Quick and easy installation without the need for heat or adhesives.
• Capacity: Supports 12 fiber splices and up to 96 bunchy fibers.
• 1 Inlet and 1 Outlet: Single cable entry and exit point for streamlined installations.
• Max Cable Diameter: Supports cables up to 14 mm in diameter.
• Compact Dimensions: Small footprint at 282x200x90 mm, ideal for tight spaces.
• Weatherproof: Fully sealed against water and dust ingress, suitable for outdoor installations.
• UV-Resistant: Designed with materials resistant to UV degradation for outdoor use.
• Waterproof Design: IP68 rating provides complete protection against water penetration.
• High Tensile Strength: Built to support heavy cables without compromising structural integrity.
• Splice Tray Capacity: Includes trays that hold up to 12 fibers per tray.
• Cable Sealing: Reliable mechanical sealing for secure cable entry and exit.
• Easy Access: Tool-free access for quick and hassle-free maintenance.
• Durability: Built to withstand harsh environments, including temperature fluctuations.
• Corrosion Resistant: Constructed from corrosion-resistant materials to prevent damage in wet environments.
• Aerial and Underground Use: Versatile for underground burial or aerial mounting applications.
• Shock Resistant: Engineered to resist mechanical shocks and impacts.
• Long-Term Reliability: Designed for long-term deployment with minimal maintenance.
• Modular Design: Expandable for future network upgrades or capacity increases.
• Industry Standard Compliance: Meets IEC 60793-2 and IEC 61300 standards for fiber optic networks.

    SCHEMATIC DIAGRAMS

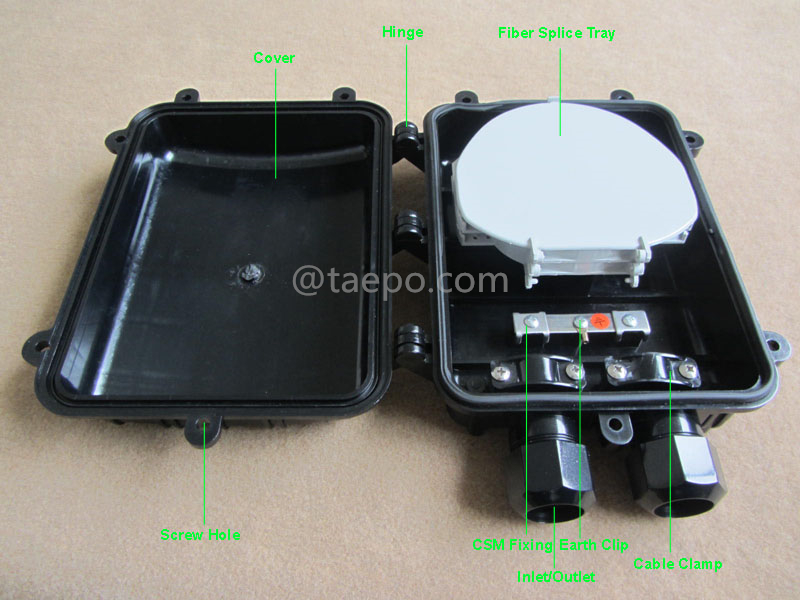

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
