What Is TL1 Self-stripping Electrical Connector Used for?
DESCRIPTIONS
TL1 self-stripping electrical connector (TP-1310-TL1), often referred to as a "tap connector" or "self-tapping connector," is a device used in electrical applications to create a secure and reliable connection between two or more wires without the need for stripping insulation from the wires beforehand. These connectors are commonly used in automotive, electrical, and electronic applications where quick and efficient wire connections are required.
It is grease filled, protecting against corrosion in damp conditions. Handles 22-14 AWG solid or stranded wire. Self-stripping U contacts for mechanical strength and electrical conductivity. It is recommended to use the crimping tool (TP-5940-998).
Overall, self-stripping electrical connectors offer a convenient and efficient solution for making electrical connections, especially in situations where traditional wire stripping methods may be cumbersome or impractical. They contribute to improved installation efficiency and reduced labor costs in various electrical and electronic applications.
MAIN FEATURES
- Self-Stripping IDC Design: Uses internal blades to pierce the insulation and contact the conductor, eliminating the need for manual stripping and reducing installation time significantly.
- Crimping Mechanism: Self-stripping connectors include a built-in spring crimping mechanism to secure the wire and maintain a strong electrical connection.
- Compatibility: Designed to work with various wire gauges and insulation types, making them versatile for different electrical applications.
- Quick Installation: They are designed for quick and efficient installation, which is crucial in applications where time is a critical factor.
- Tight Seal: Many self-stripping connectors offer a tight seal to protect the connection from moisture, dust, and other environmental factors, ensuring long-term reliability.
- Cost-Efficiency: They are often cost-effective solutions for making electrical connections, saving both time and labor costs.
- Three-Wire Capacity: Accommodates up to three wires in a single connector body, supporting parallel splicing or branch taps without requiring additional accessories or connectors.

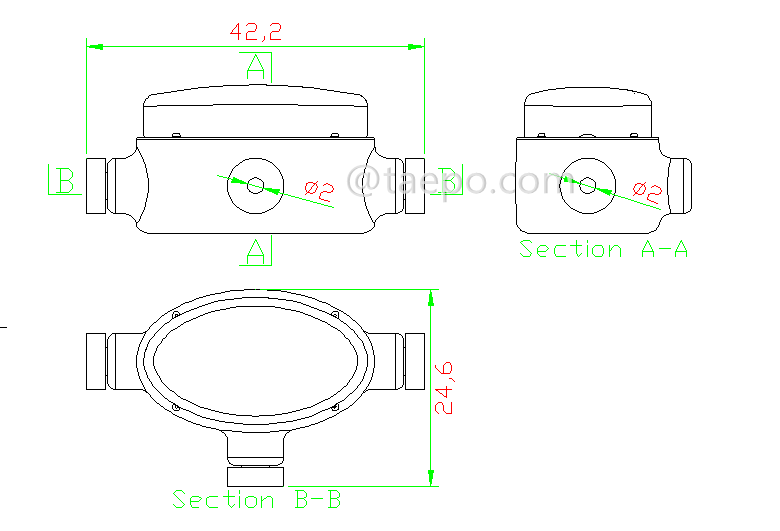

SCHEMATIC DIAGRAMS

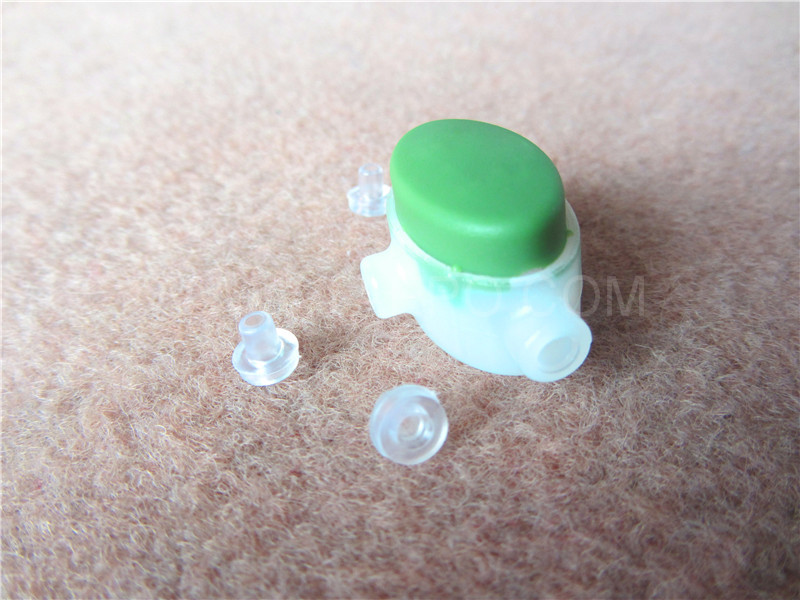

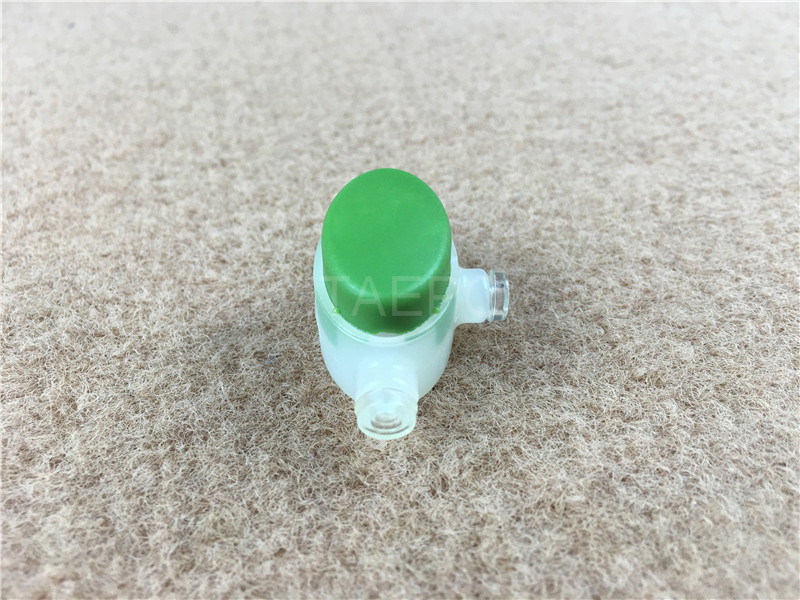

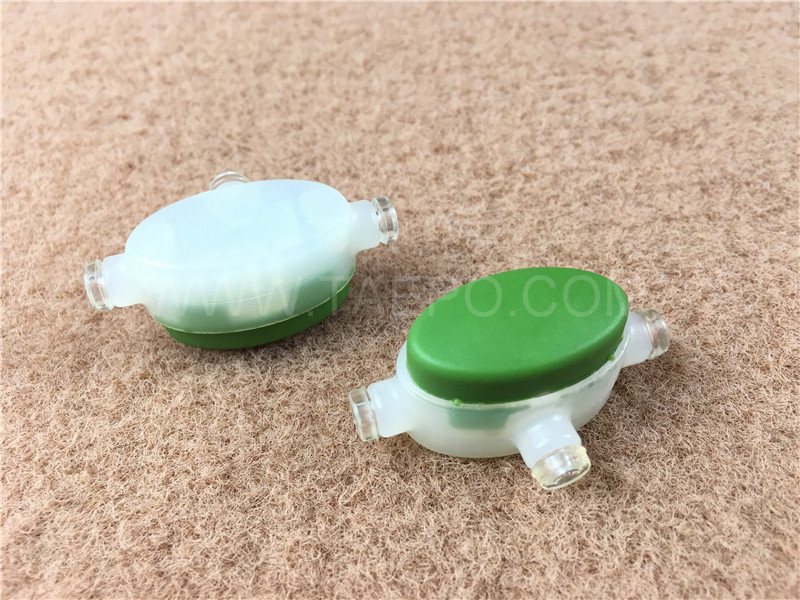

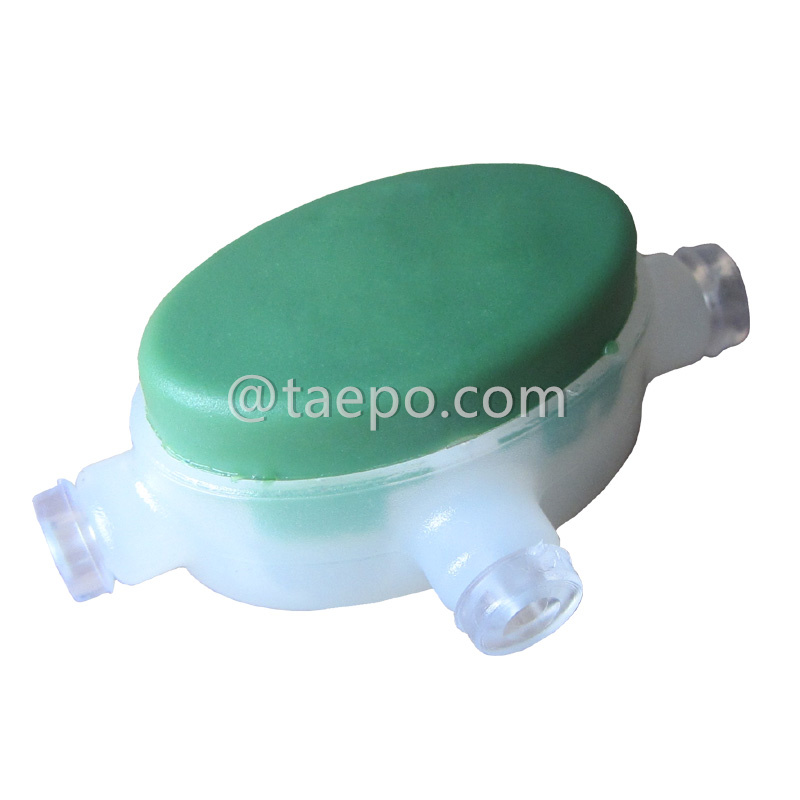

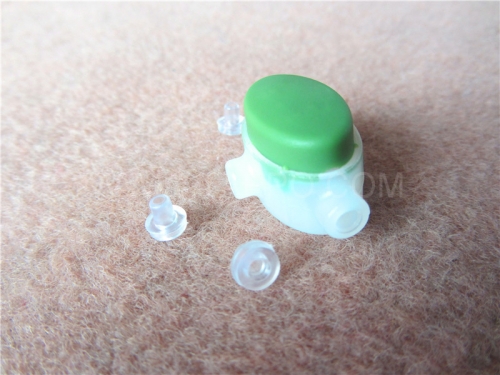

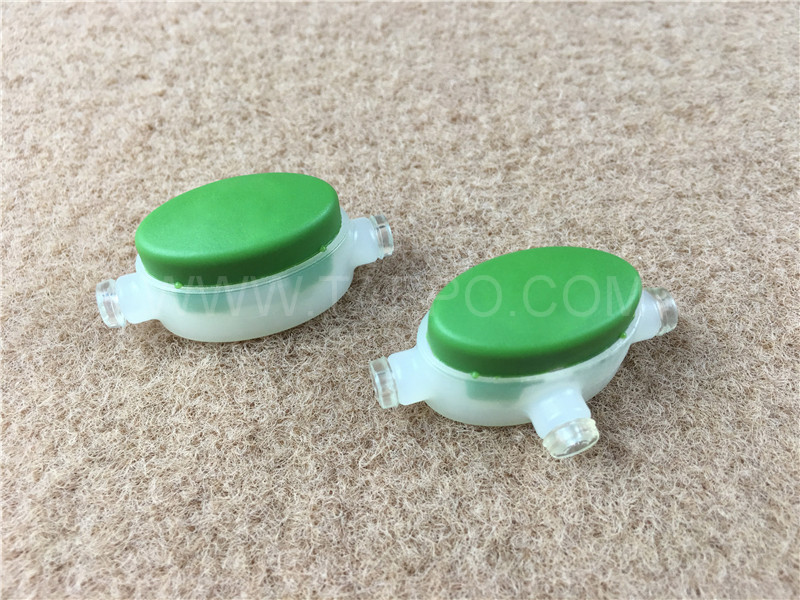

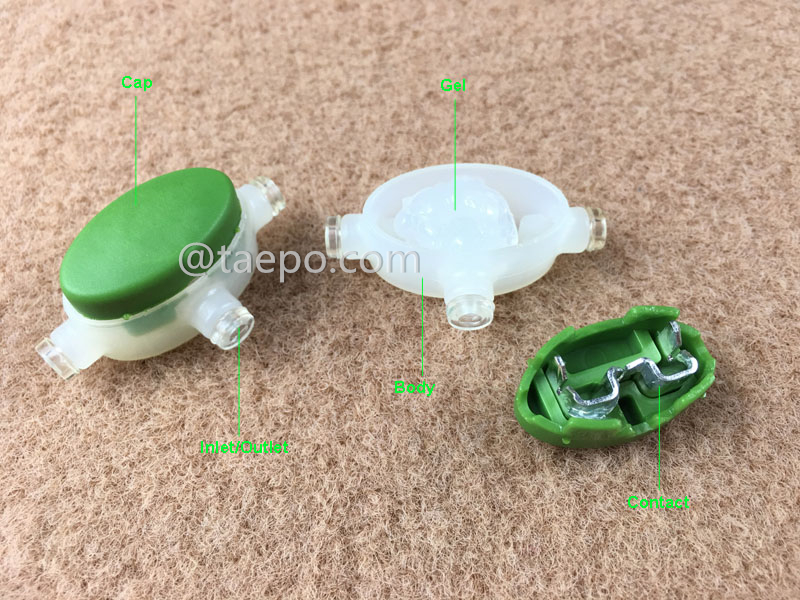

ILLUSTRATION PICTURES

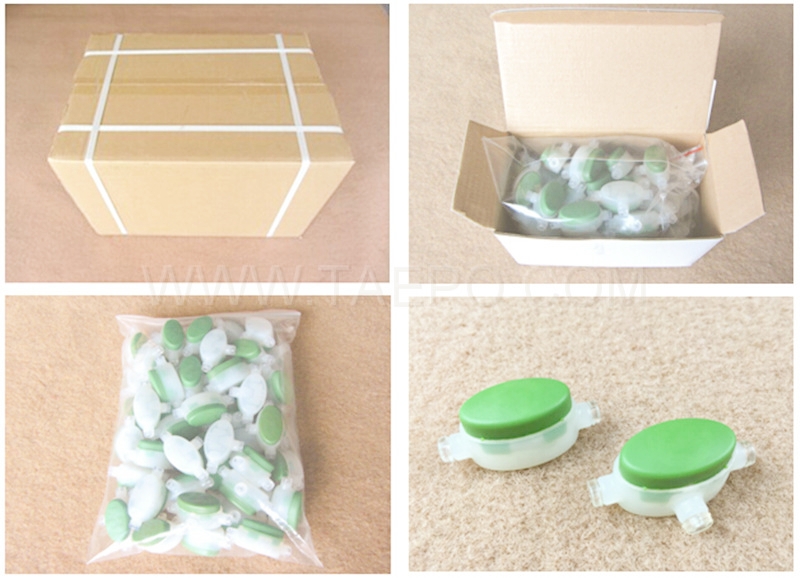

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1310-TL1 |
TL1 self-stripping electrical connectors, 3-wire, 1.0-1.35mm conductor, max insulation 3.6mm, gel filled, tinned brass contact, Nylon housing, with 3 plugs |
