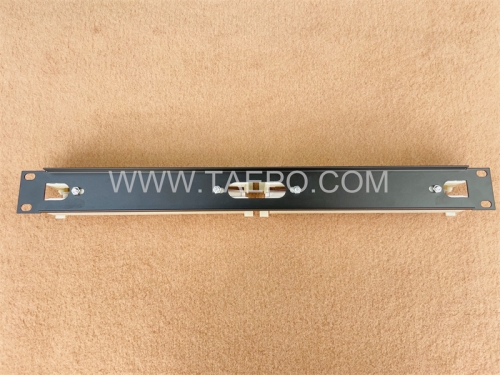

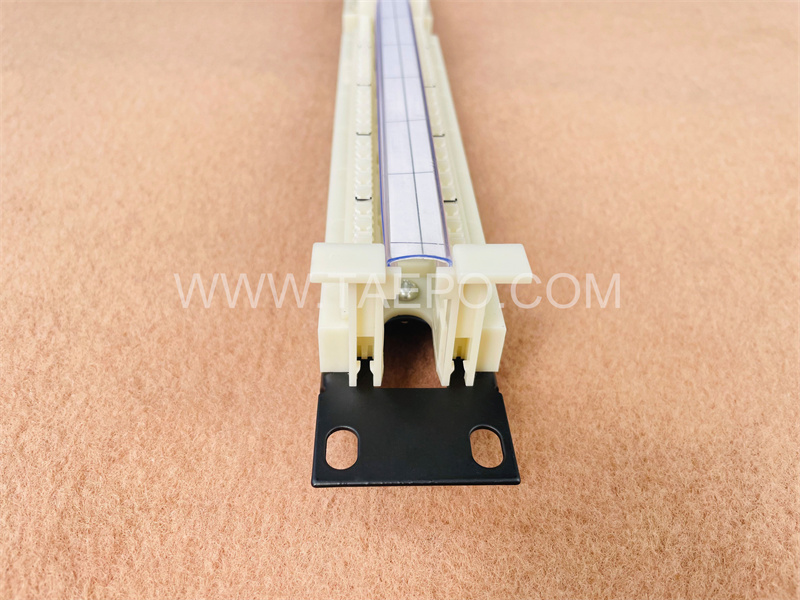

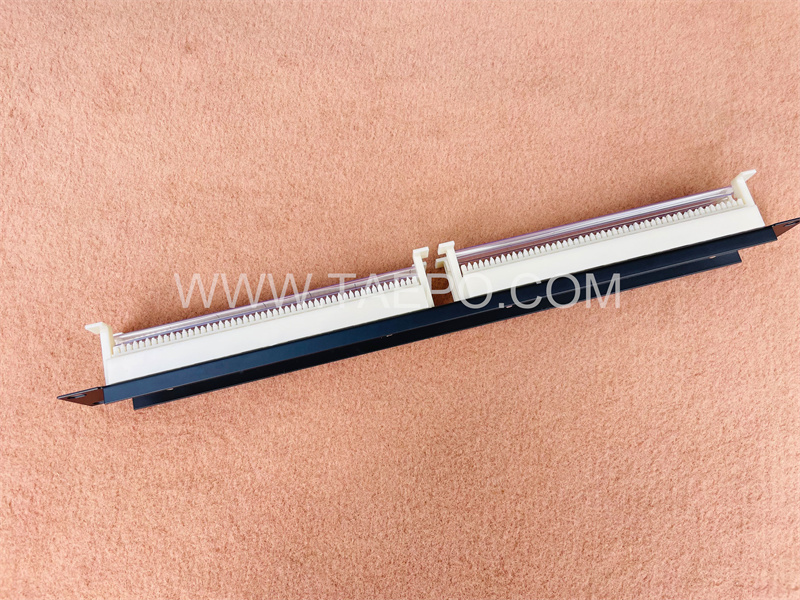

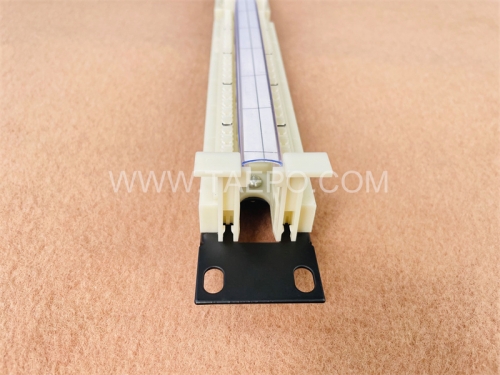

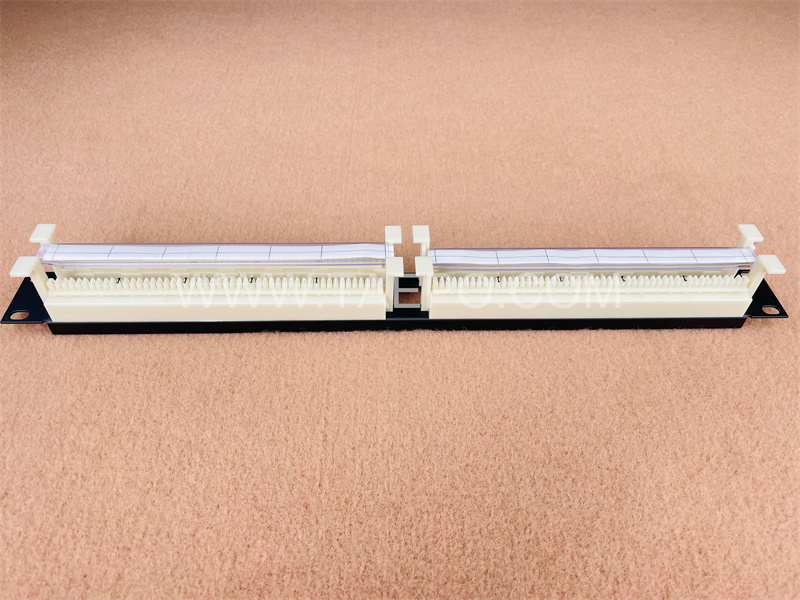

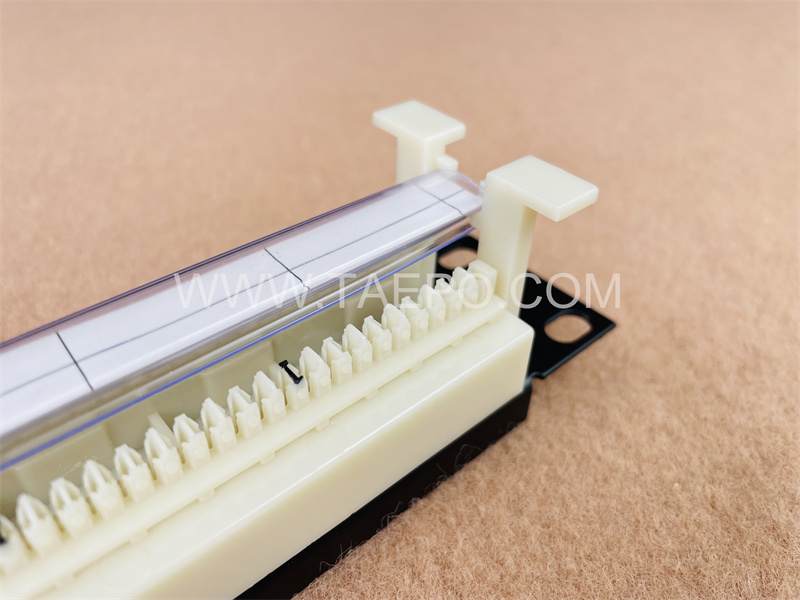

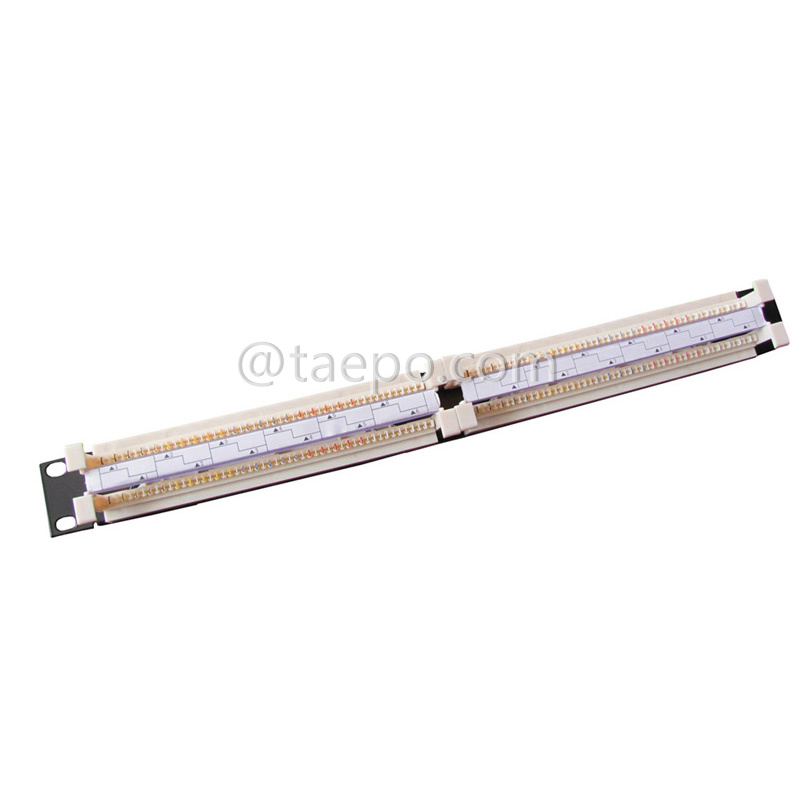

100 pairs 110Connect cross connect rack mount panel for connecting blocks

    Descriptions

A "100 pairs 110Connect cross connect rack mount panel for connecting blocks" is a piece of equipment used in telecommunications and networking to organize and manage multiple pairs of copper cables terminated on 110-style connecting blocks.

Let's break down its components:

100 Pairs: This indicates the capacity of the panel to handle 100 pairs of copper cables. A pair typically consists of two wires used for transmitting and receiving signals in telecommunications.

110Connect: This refers to a type of termination system commonly used with 110-style connecting blocks. It provides a method for terminating and connecting multiple wires efficiently and securely.

Cross Connect: A cross-connect panel facilitates the interconnection of individual circuits or wires within a larger cabling system. It allows for easy routing and patching of connections between different blocks or equipment.

Rack Mount: This panel is designed to be mounted in a standard equipment rack, typically with a 19-inch width, making it suitable for installation in server rooms or data centers.

For Connecting Blocks: This panel is specifically designed for use with 110-style connecting blocks, which are commonly used in telecommunications for terminating and connecting copper cables.


In summary, the "100 pairs 110Connect cross connect rack mount panel for connecting blocks" provides a structured and organized solution for managing numerous copper cable connections in telecommunications and networking applications. It simplifies the process of routing and patching connections between various blocks or equipment within a network infrastructure.

    Main Features

The main feature of a "100 pairs 110Connect cross connect rack mount panel for connecting blocks" is its capacity and efficiency in organizing and managing large numbers of copper cable connections in telecommunications and networking environments.

Here are some key aspects that highlight its main features:

High Capacity: With the ability to handle 100 pairs of copper cables, this panel provides ample capacity for connecting numerous circuits or lines within a network infrastructure.

Efficient Termination: The 110Connect termination system offers a reliable and efficient method for terminating and connecting individual wires or cables. It ensures secure connections while minimizing installation time and effort.

Structured Organization: The panel facilitates structured organization of cables and connections, making it easier to manage and maintain the network infrastructure. Each pair of cables can be neatly terminated and labeled for easy identification.

Rack Mountable Design: Designed to be mounted in a standard equipment rack, the panel integrates seamlessly into rack-based network setups. This allows for efficient use of rack space and easy access for maintenance and troubleshooting.

Cross Connect Capability: The panel supports cross-connect functionality, enabling the routing and patching of connections between different blocks or equipment within the network. This flexibility allows for easy configuration and reconfiguration of network connections as needed.


Overall, the main feature of the "100 pairs 110Connect cross connect rack mount panel for connecting blocks" is its ability to provide a structured, efficient, and scalable solution for managing large numbers of copper cable connections in telecommunications and networking environments.

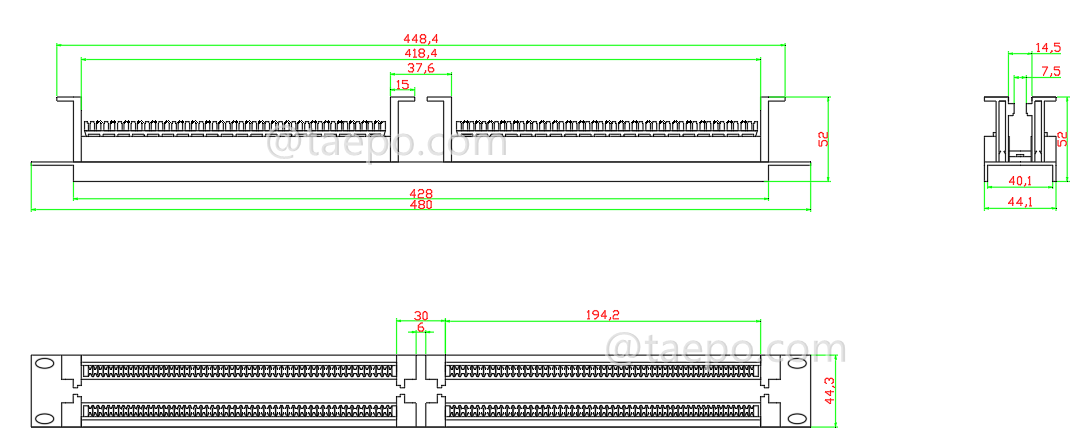

    Schematic Diagrams

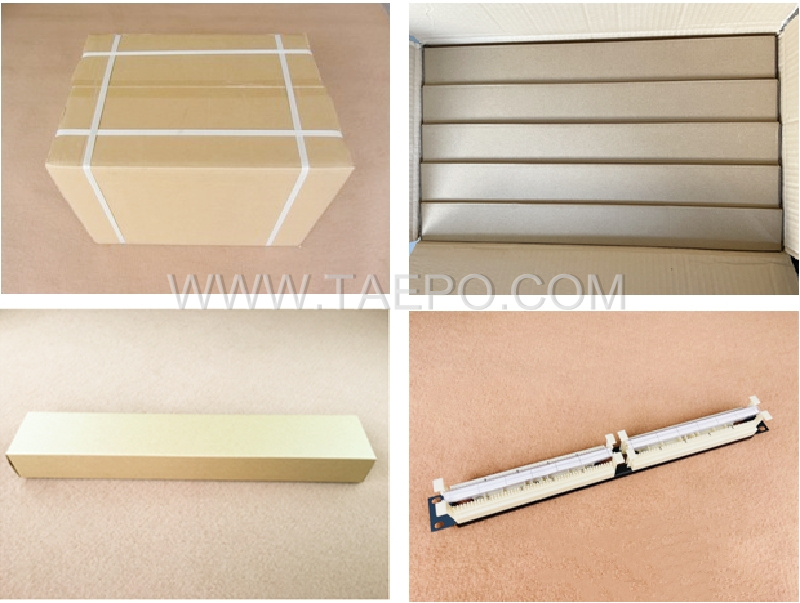

    Packing Pictures

    Order Data
